In modern high-end equipment manufacturing, off-the-shelf components frequently fail to meet specialized spatial constraints, extreme load demands, or non-standard transmission ratios. As a specialized contract manufacturer, we combine advanced custom gear machining with multi-axis CNC precision machining to transform complex engineering designs into high-reliability physical components.

1. Cross-Industry Custom Gear Machining & Non-Standard Applications

Different sectors demand distinct gear parameters, vibration controls, wear characteristics, and environmental resistances. Tailored custom gear machining solves complex mechanical transmission bottlenecks across diverse industries:

Target Industry Typical Application Role of Custom Gear Machining & Custom Manufacturing
Humanoid Robotics & Actuators Joint reducers, dexterous hand drives, micro-actuators Ultra-small module custom gear machining with zero-backlash tooth profiles to maximize power density in extremely tight spaces.
Medical Devices & Bio-Engineering Surgical robots, peristaltic pumps, diagnostic scanners Biocompatible stainless steel and engineering plastic custom gear machining for silent, sterile, and maintenance-free motion.
Automotive & New Energy Drives Specialty vehicles, custom gearboxes, test benches, differentials Custom gear machining optimized for non-standard center distances, custom helix angles, and high fatigue resistance under high speeds.
Heavy Machinery & Energy Industrial gearboxes, mud pumps, downhole drilling tools Large-module custom gear machining engineered to withstand extreme torque, shock loads, and abrasive operational environments.
Semiconductor & Optical Systems Wafer handling arms, precision alignment stages High-precision rack-and-pinion custom gear machining designed to eliminate accumulated pitch error and guarantee sub-micron positioning.

2. Material Selection Guide for Custom Gear Machining

Material choice determines tooth strength, wear rate, and operational lifespan. Our custom gear machining services cover a comprehensive range of metals and engineering polymers:

Material Class Common Grades Key Properties & Machinability Custom Gear Machining Applications
Alloy Structural Steel 20CrMnTi, 42CrMo, 8620, 20CrNiMo High core toughness; achieves HRC 58–62 surface hardness post-carburizing/nitriding High-load, impact-heavy custom gear machining for automotive transmissions and heavy industrial gear shafts.
Stainless Steel 304, 316L, 17-4PH (SUS630) Outstanding corrosion resistance; 17-4PH yields high tensile strength via precipitation hardening Corrosion-resistant custom gear machining for marine machinery, outdoor actuators, and chemical processing.
Aluminum Alloys 7075-T6, 6061-T6 Exceptional strength-to-weight ratio (7075), lightweight, rapid heat dissipation Lightweight custom gear machining for aerospace mechanisms, drones, and robotic drive housings.

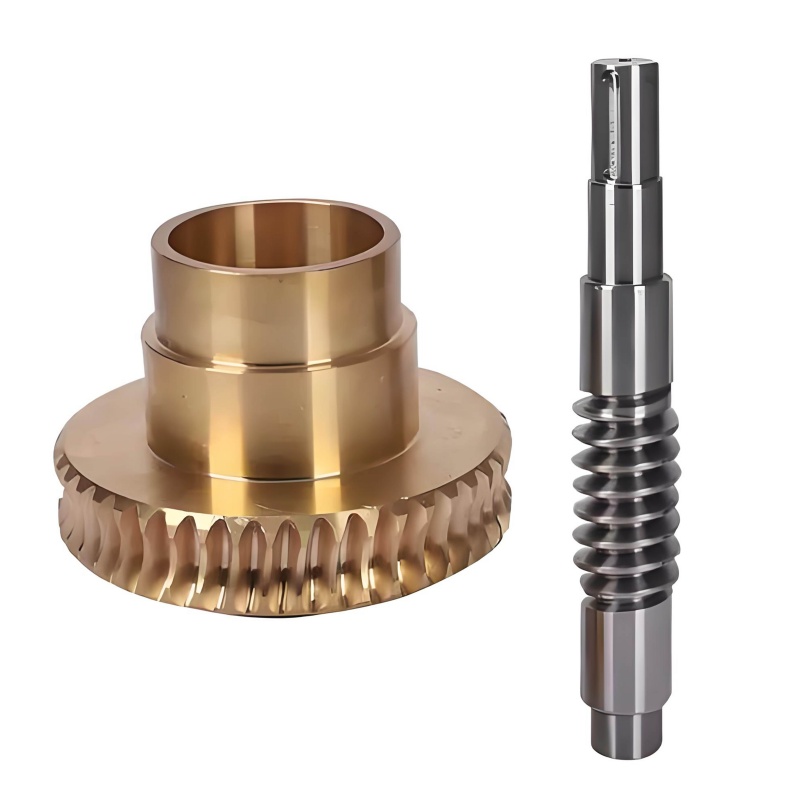

Copper Alloys & Bronze C93200 (SAE 660), C95400, C36000 Low friction coefficient, anti-galling, excellent self-lubricating wear resistance Custom gear machining for bronze worm wheels, brass micro-pinions, and low-friction sliding wear sleeves.

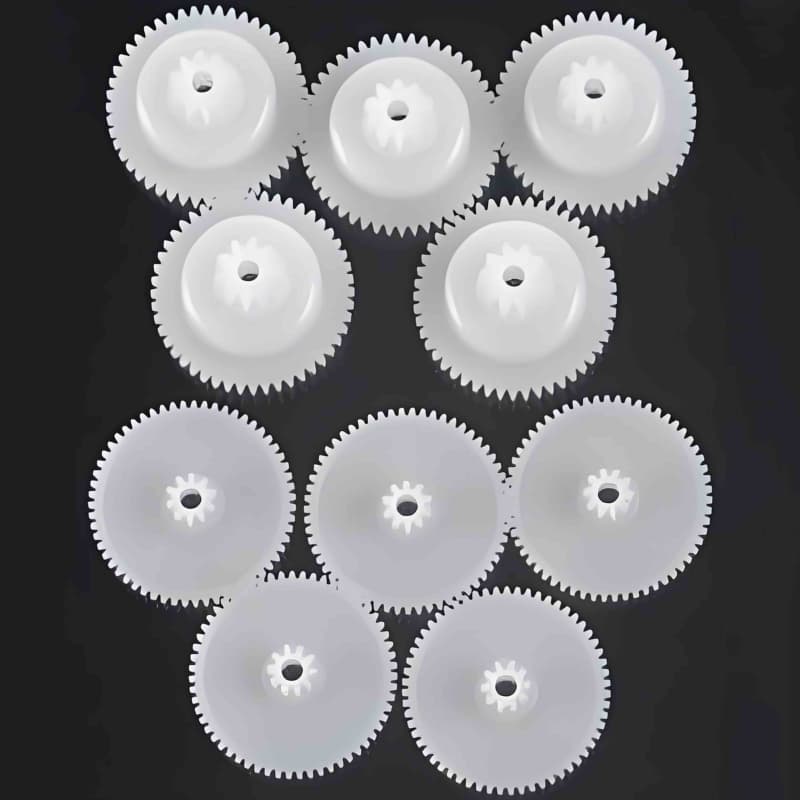

Engineering Plastics PEEK, POM (Delrin), Nylon (PA66), PMMA Ultra-lightweight, self-lubricating, quiet running, chemical resistant without grease Silent and cleanroom custom gear machining for medical diagnostic devices, food processing, and PMMA/POM spur gears.

3. Core Technical Capabilities in Custom Gear Machining

Our facility integrates specialized gear-cutting machinery with strict quality controls to execute complex custom gear machining projects:

  • Full Gear Parameter Customization: Supporting non-standard modules, DP (Diametral Pitch), pressure angles (14.5°, 20°, 25°), helix angles, and profile modification to fit exact center distances.

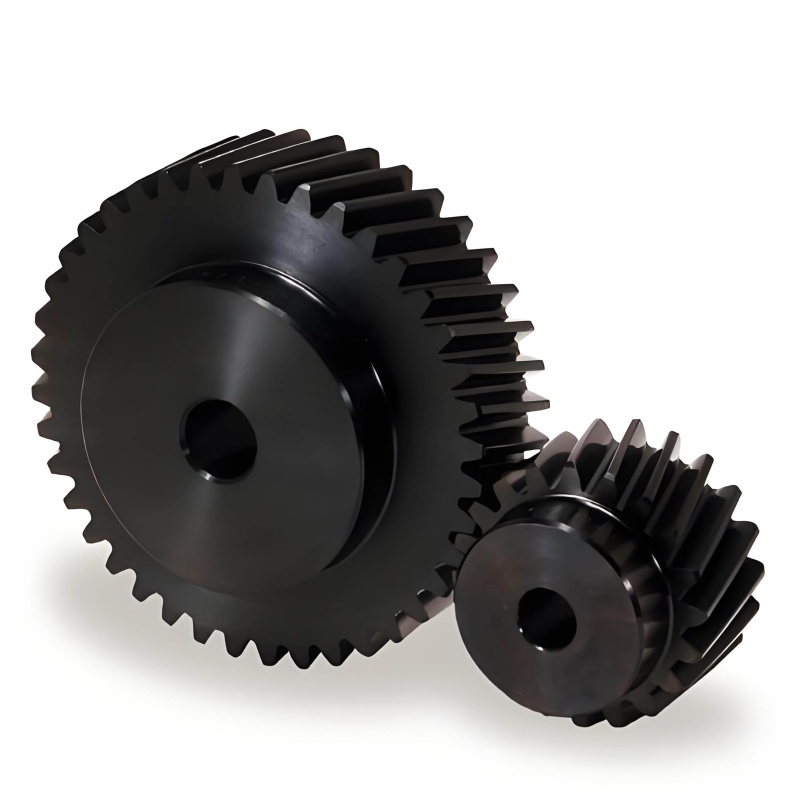

  • All Gear Geometries Covered: Specialized in spur gear, helical gear, bevel gear, worm drive, internal ring gear, and planetary gear set custom gear machining.

  • Precision Tooth Grinding & Backlash Control: Utilizing CNC gear hobbing, gear shaping, and high-precision CNC gear grinding for custom gear machining, achieving tight ISO/AGMA tolerances (DIN 5 to DIN 7 levels).

  • Thermal & Surface Modifications: Complete post-processing options for custom gear machining, including carburizing, induction hardening, nitriding, DLC coating, and black oxide finishes for superior wear protection.

4. One-Stop Precision CNC Machining & Quality Assurance

Beyond specialized custom gear machining, we deliver turnkey contract manufacturing for full mechanical assemblies:

  • Multi-Process Manufacturing: Seamlessly integrating custom gear machining with 5-axis CNC milling, Swiss turning, EDM wire cutting, and surface grinding for complete housing and shaft integration.

  • Rigorous Quality Verification: Every custom gear machining production run is verified using Gear Inspection Centers, Coordinate Measuring Machines (CMM), optical comparators, and surface roughness testers.

  • Flexible Batch Production: Providing scalable manufacturing options, from single-piece custom gear machining rapid prototyping to full-scale OEM volume production.
