High-precision custom cold plate machining for non-standard liquid cold plates and cold plate assemblies. CNC micro-channel milling for AI, EV, and aerospace.

Category:

High-power density electronics demand precision thermal management solutions built through specialized custom cold plate machining to achieve exact dimensional tolerances and maximum heat dissipation. As standard heat sinks hit physical limits, custom-engineered liquid cold plates and multi-component cold plate assemblies provide reliable, leak-free cooling across diverse industrial applications.

Industry-Specific Thermal Solutions

Because thermal loads, structural demands, and fluid dynamics vary significantly across sectors, custom cold plate machining allows for fully tailored geometries, internal flow channels, and mounting configurations.

Industry Application of Liquid Cold Plates Role of Cold Plate Assemblies Custom Cold Plate Machining Focus
High-Performance Computing & AI Direct-to-chip liquid cooling for high-wattage CPUs and GPUs. Integrates precision liquid cold plates with manifold blocks, quick disconnects, and copper thermal pads. Ultra-flat contact surfaces (flatness $\le 0.005\text{ mm}$), micro-channel milling down to $0.2\text{ mm}$ fin width.
Electric Vehicles & e-Mobility Powertrain inverter, battery pack, and fast-charging station thermal control. Heavy-duty cold plate assemblies engineered for high vibration resistance and fluid circulation. Deep pocketing, large-format 5-axis CNC milling of 6061-T6 and 6063 aluminum alloys.
Aerospace & Defense Avionics, airborne radar systems, and satellite payload thermal control. Lightweight cold plate assemblies combining structural chassis mounting with internal coolant loops. High strength-to-weight ratio machining, vacuum-brazing joint prep, strict zero-porosity quality control.
Medical Devices & Lasers High-power surgical laser diodes and MRI gradient coil cooling. Ultra-pure copper liquid cold plates integrated with precision fluid fittings and sensors. CNC turning and milling of oxygen-free copper (C11000) with smooth, burr-free internal channels.
Renewable Energy & ESS Industrial power conversion systems and energy storage modules. Corrosion-resistant cold plate assemblies designed for continuous outdoor operation. Multi-pass fluid channel machining, hard-coat anodizing, and multi-axis thread tapping.

Core Capabilities in Custom Cold Plate Machining

Precision CNC execution is critical to guaranteeing thermal efficiency and structural integrity in liquid cold plates.

  • Flow Path & Micro-Channel Milling: Executing intricate internal flow paths, pin-fin arrays, and turbulence-inducing features via high-speed custom cold plate machining to maximize surface area contact without creating excessive pressure drops.

  • Surface Topography Control: Minimizing thermal resistance between the heat source and liquid cold plates by achieving surface flatness under 0.005 mm and surface finishes down to Ra 0.4.

  • Precision Joint Preparation: Machining exact tongue-and-groove joints, step profiles, and contact faces tailored for friction stir welding, vacuum brazing, or Nocolok brazing of complex cold plate assemblies.

  • Turnkey Integration & Testing: Transforming individual machined components into complete cold plate assemblies through hardware insertion (Helicoils, O-rings, fluid connectors), automated pressure drop testing, and 100% helium leak detection.

Material Selection for Liquid Cold Plates

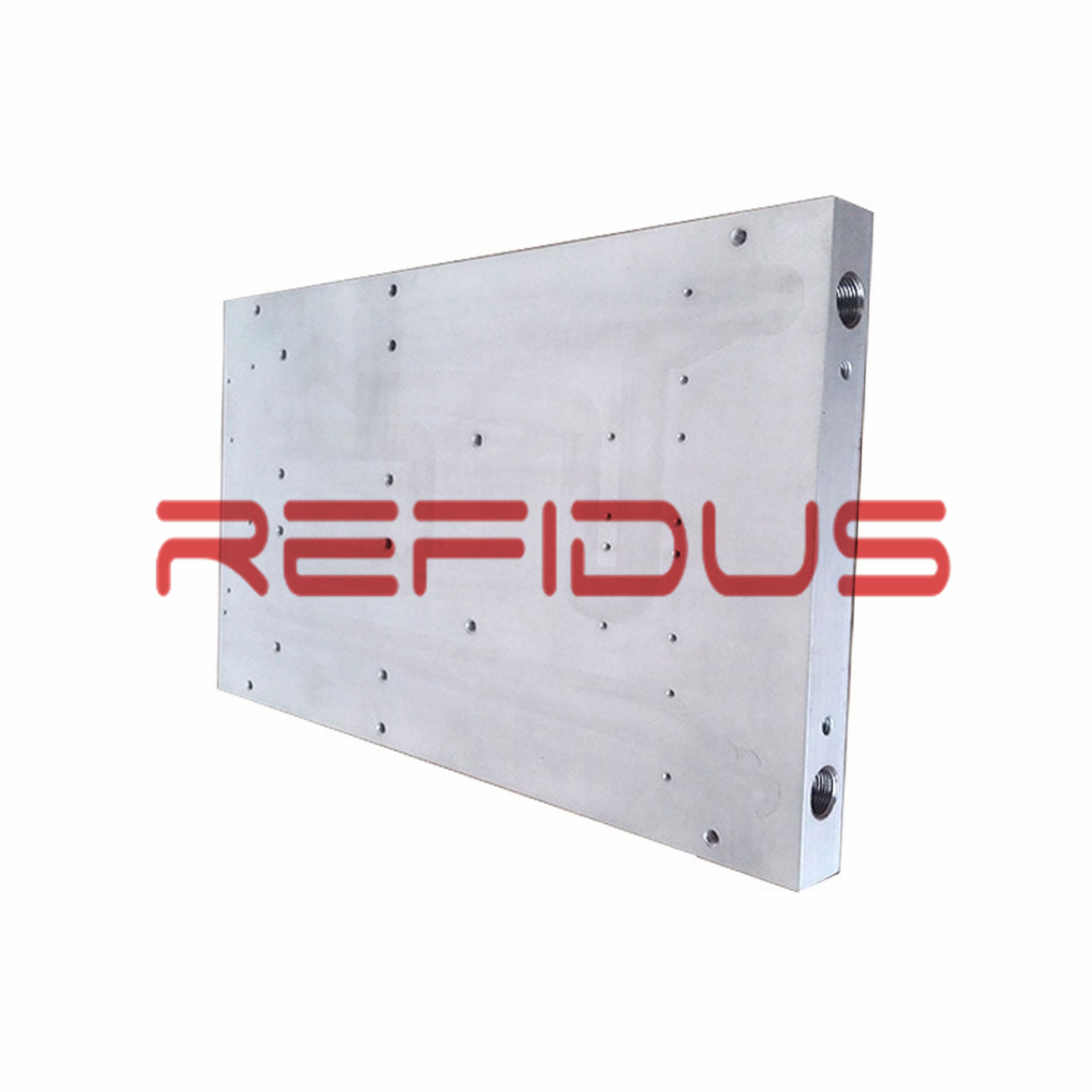

  • Aluminum Alloys (6061-T6, 6063, 5052): The industry standard for lightweight, cost-effective liquid cold plates. Excellent CNC machinability, strong structural performance, and ideal for protective anodizing or nickel plating.

  • Oxygen-Free Copper (C10200 / C11000): Delivers maximum thermal conductivity  approx 390 W/m for extreme heat-flux applications. Precision custom cold plate machining ensures clean internal channels free of burrs or wall distortion.

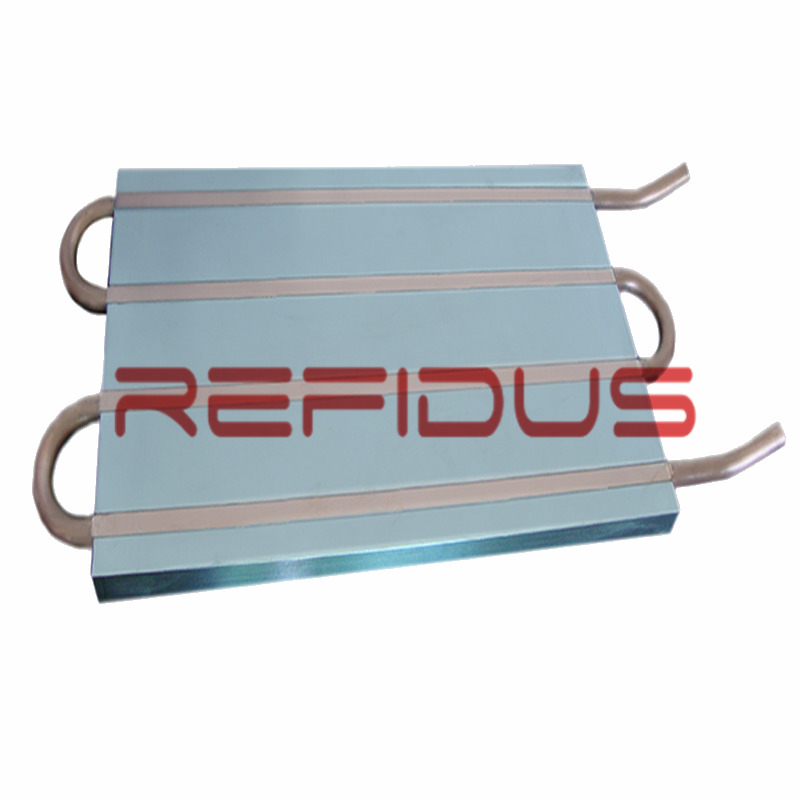

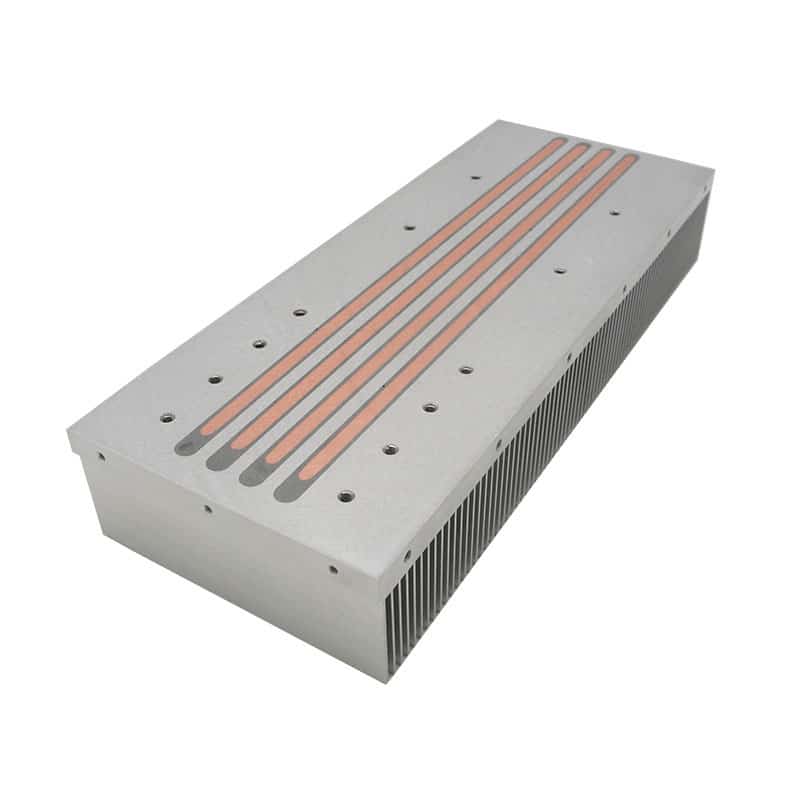

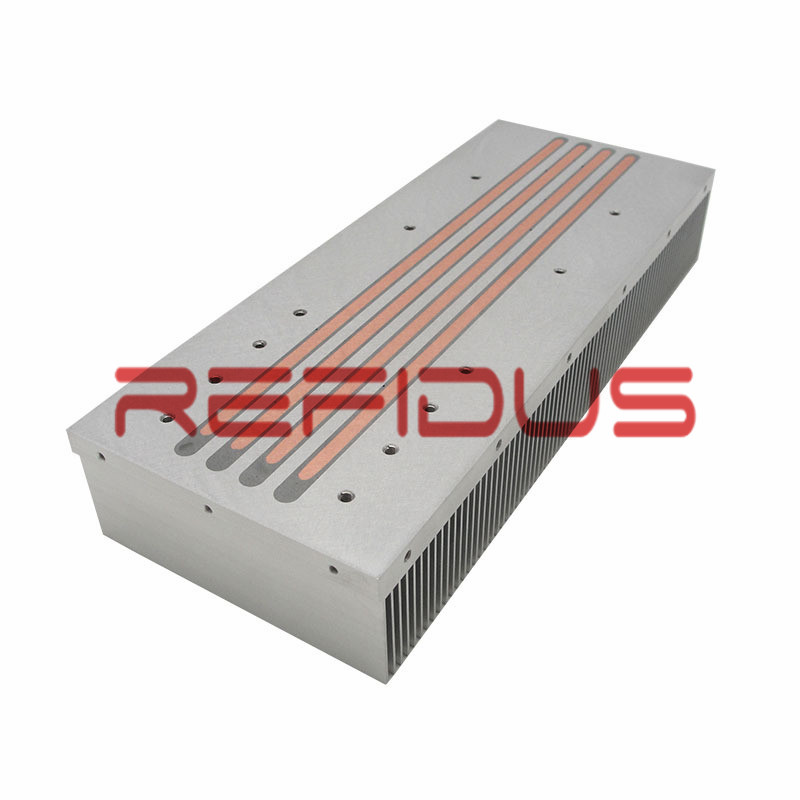

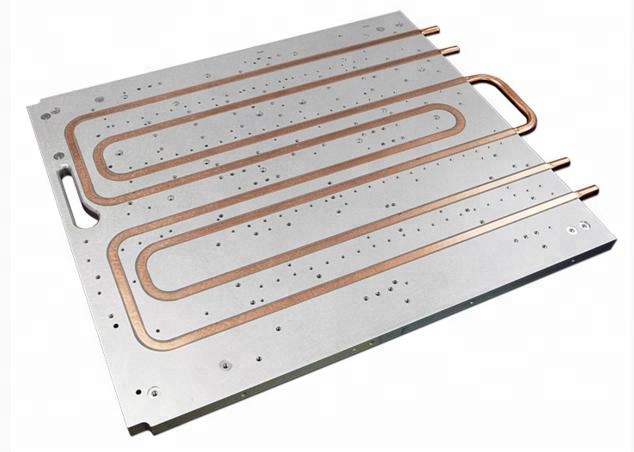

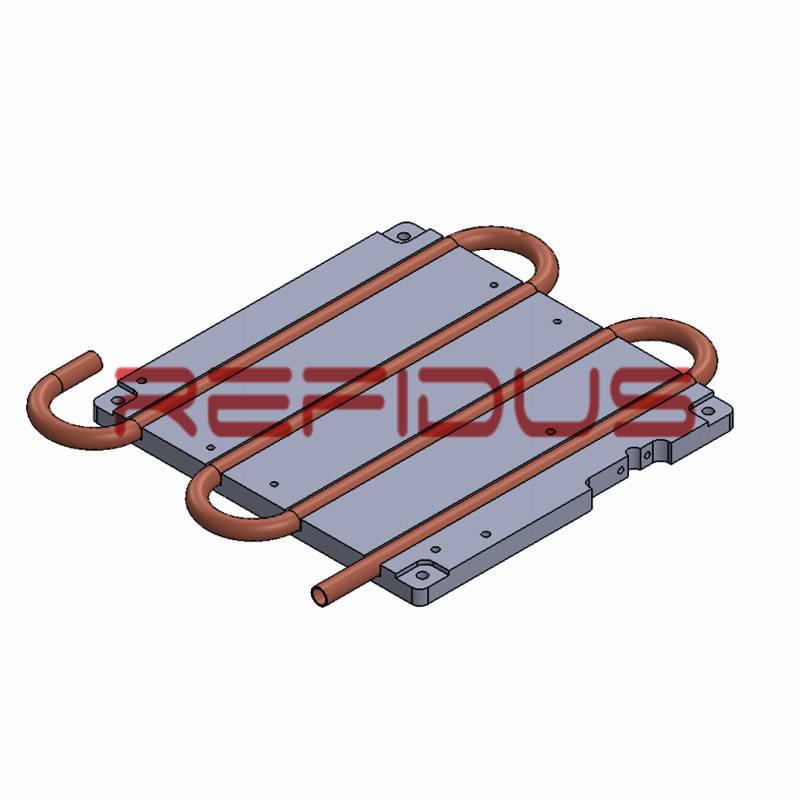

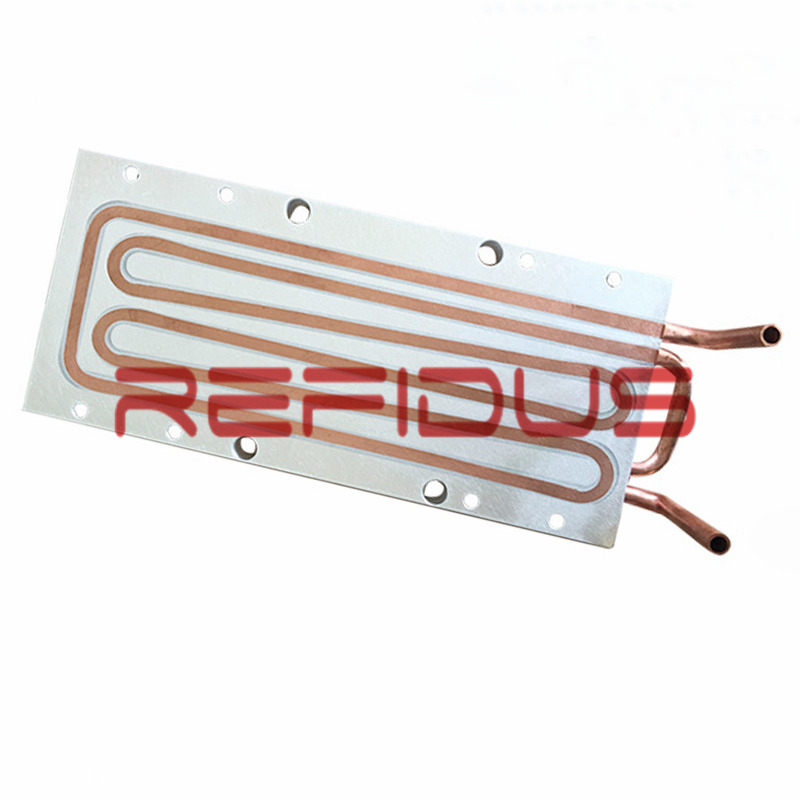

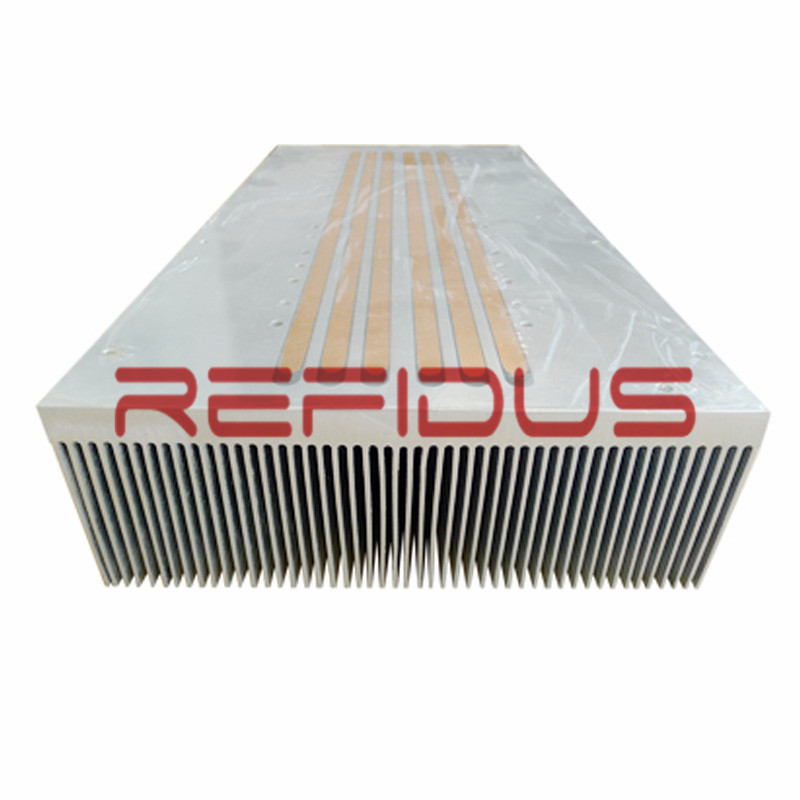

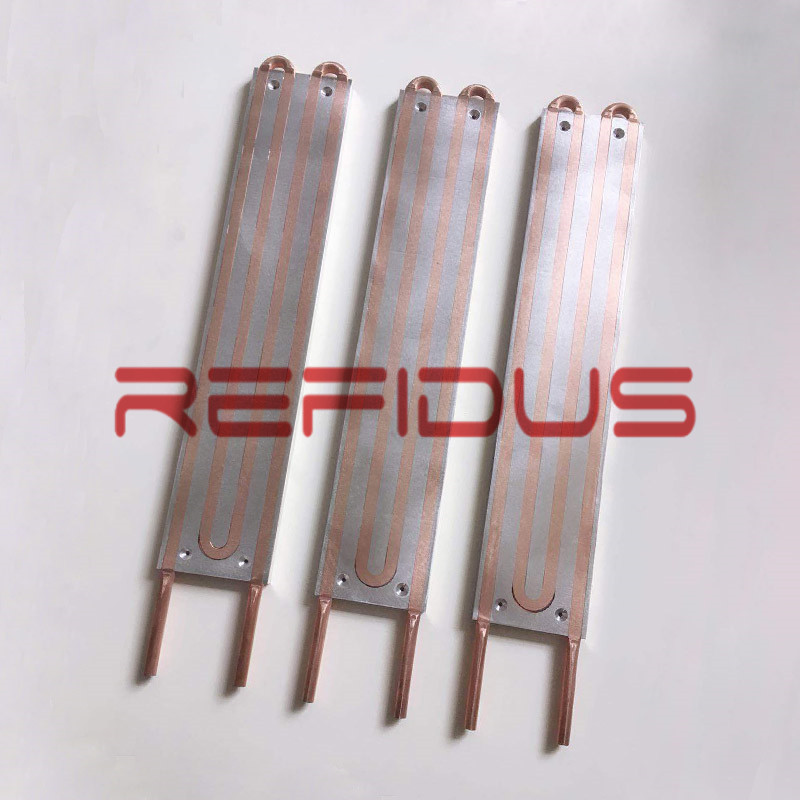

  • Hybrid Copper-Aluminum Designs: Combines CNC-machined aluminum bodies with embedded or brazed copper tubing, delivering high localized thermal transfer in critical hotspot zones while keeping overall cold plate assemblies lightweight.
