Driving Hardware Innovation: The Complete Guide to Custom Non-Standard Machining & Precision CNC Prototyping
In modern product development, no two engineering challenges are identical. From high-torque joint housings in humanoid robotics to leak-tight fittings in industrial fluid control, custom non-standard hardware demands absolute precision, material versatility, and rapid validation. Utilizing dedicated CNC prototyping, high-speed Rapid CNC prototyping, and versatile CNC rapid prototyping enables engineering and R&D teams to validate complex geometries, confirm material performance, and accelerate time-to-market without expensive upfront tooling.
Comprehensive Machinable Materials Matrix
Selecting the right material is critical to achieving functional authenticity during design validation. Our multi-axis machining facilities support an extensive range of metals and engineering plastics tailored for Rapid CNC prototyping and custom component manufacturing.
| Material Category | Specific Grades / Alloys | Key Engineering Properties | Ideal Applications in CNC Rapid Prototyping |

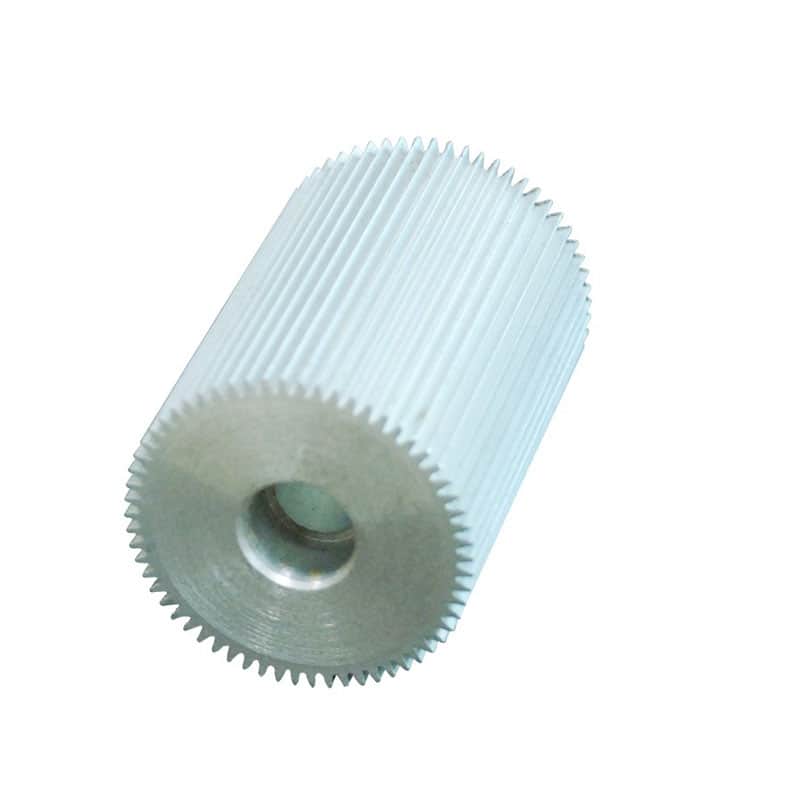

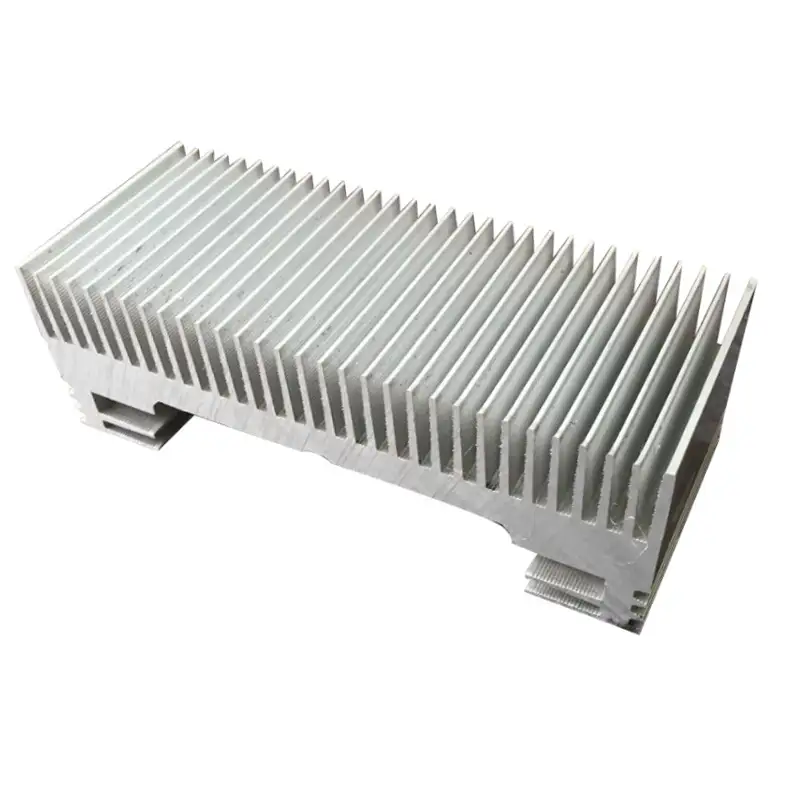

| Aluminum Alloys | 6061-T6, 7075-T6, 2024, 5052 | High strength-to-weight ratio, excellent heat dissipation, superior machinability. | Lightweight structural brackets, heat sinks, EV battery housings, and fast-turn CNC prototyping enclosures. |

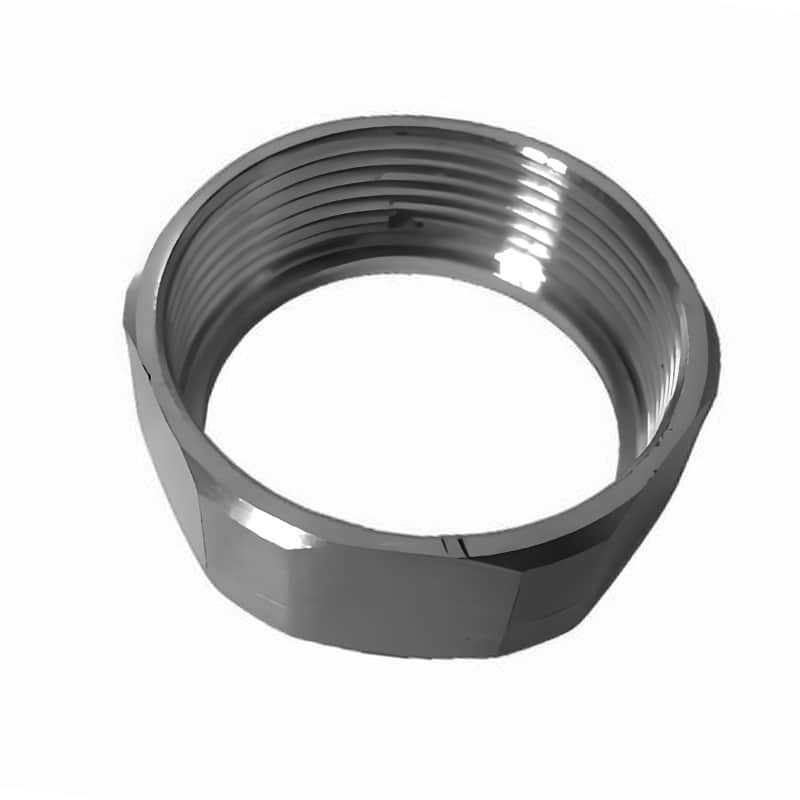

| Stainless Steel | 304, 316L, 17-4 PH, 416, 303 | Exceptional corrosion resistance, high tensile strength, excellent weldability. | Non-standard threaded pipe fittings, hydraulic valve bodies, surgical instruments, and high-pressure Rapid CNC prototyping. |
| Titanium Alloys | Grade 2, Grade 5 (Ti-6Al-4V) | High yield strength, extreme temperature stability, complete biocompatibility. | Aerospace structural fasteners, high-duty drone frames, and specialized medical implants evaluated via CNC rapid prototyping. |

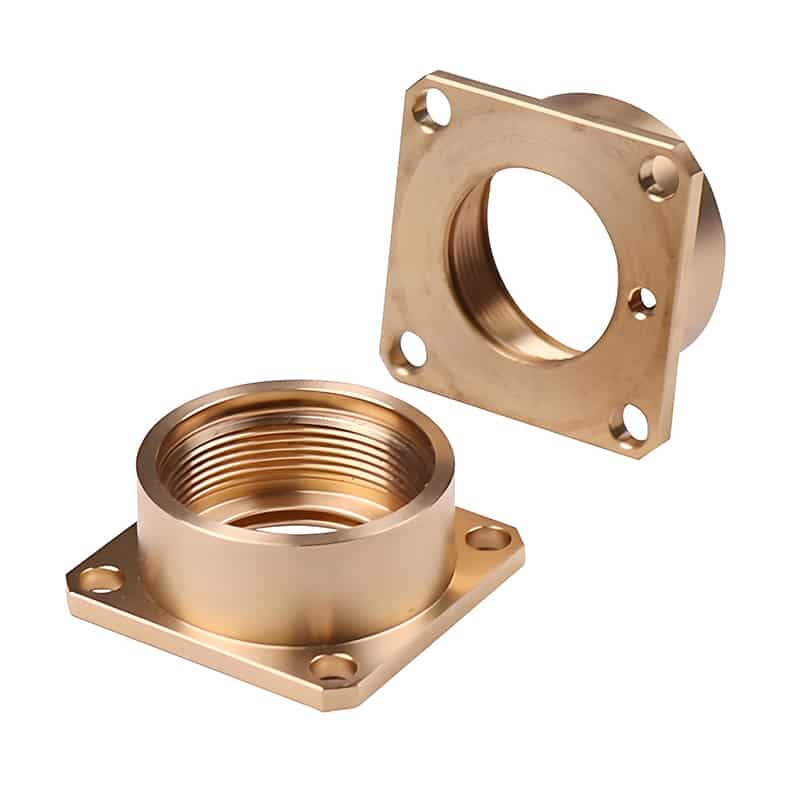

| Brass & Copper | C36000, C11000, Beryllium Copper | High electrical/thermal conductivity, natural lubricity, low magnetic permeability. | Custom electrical busbars, RF shielding blocks, non-standard threaded bushings, and precision sensor bodies. |

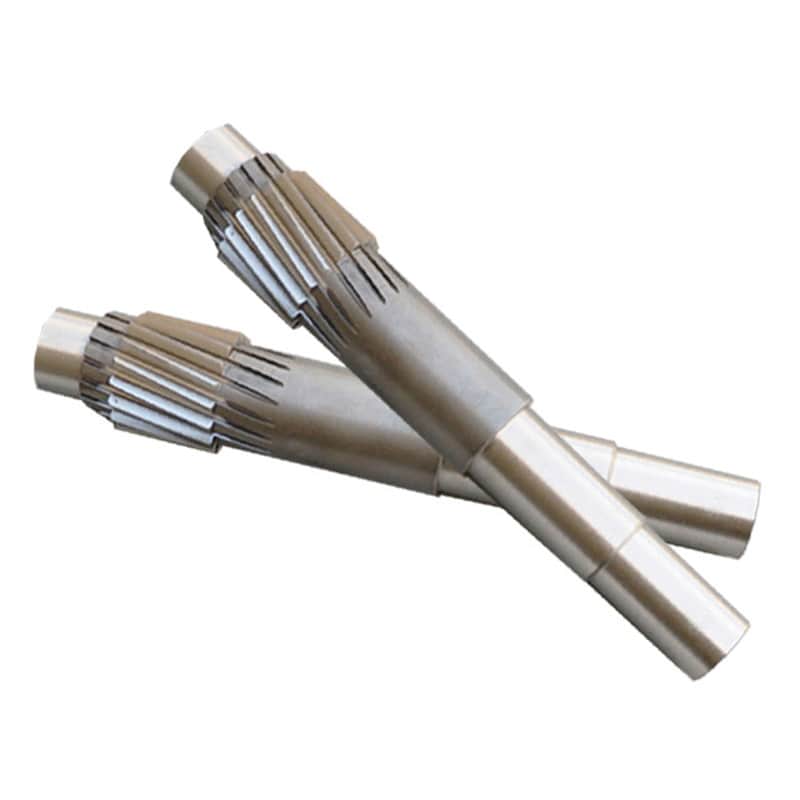

| Alloy & Tool Steels | 4140, 4340, Tool Steel D2, A2, H13 | Extreme surface hardness, wear resistance, fatigue strength under cyclic loads. | Dynamic shafts, drive gears, custom fixture tooling, and wear-resistant components in CNC prototyping. |
| PEEK (Polyetheretherketone) | Unfilled PEEK, 30% Glass-Filled, 30% Carbon-Filled | Continuous heat resistance ($260^\circ\text{C}$), chemical inertness, high mechanical rigidity. | Ultra-precise Rapid CNC prototyping for aerospace connectors, semiconductor chamber parts, and medical isolators. |
| PMMA (Acrylic) | Optical Grade Clear PMMA | Superior optical transparency, high surface hardness, excellent dimensional stability. | Fluidic manifolds, optical light guides, visual inspection prototypes, and transparent housings processed via CNC rapid prototyping. |
| Polypropylene (PP) | Homopolymer PP, Copolymer PP | High chemical resistance, fatigue resistance (living hinges), extremely low density ($0.90\text{ g/cm}^3$). | Custom chemical handling fittings, automotive fluid tanks, laboratory containers, and lightweight CNC prototyping models. |
| POM (Delrin / Acetal) | Delrin 150, Delrin 100, Glass-Filled POM | High mechanical stiffness, low coefficient of friction, zero water absorption. | Precision spur gears, sliding bushings, wear plates, and snap-fit mechanisms evaluated during Rapid CNC prototyping. |
| PTFE (Teflon) | Virgin PTFE, Filled PTFE | Near-zero friction, broad temperature range ($-200^\circ\text{C}$ to $+260^\circ\text{C}$), universal chemical immunity. | High-temperature sealing gaskets, non-standard valve seats, and electrical insulators machined via CNC rapid prototyping. |
Multi-Industry Versatility & Application Breakdown
Non-standard machined parts serve distinct functional purposes across diverse industries. Implementing targeted CNC prototyping strategies ensures every part meets its unique operational environment:
1. Humanoid Robotics & Dexterous Actuators
-
Requirements: Ultra-compact footprints, minimal weight, high torque capability, and tight thread root/crest tolerances.
-
Role of CNC Prototyping: Multi-axis CNC prototyping allows engineering teams to rapidly evaluate custom motor housings, harmonic drive covers, and dexterous finger linkages made from high-strength 7075-T6 aluminum or lightweight PEEK.
2. Industrial Fluid Systems & Non-Standard Hydraulics
-
Requirements: Zero-leakage sealing under extreme pressure, custom thread profiles, and chemical resistance.
-

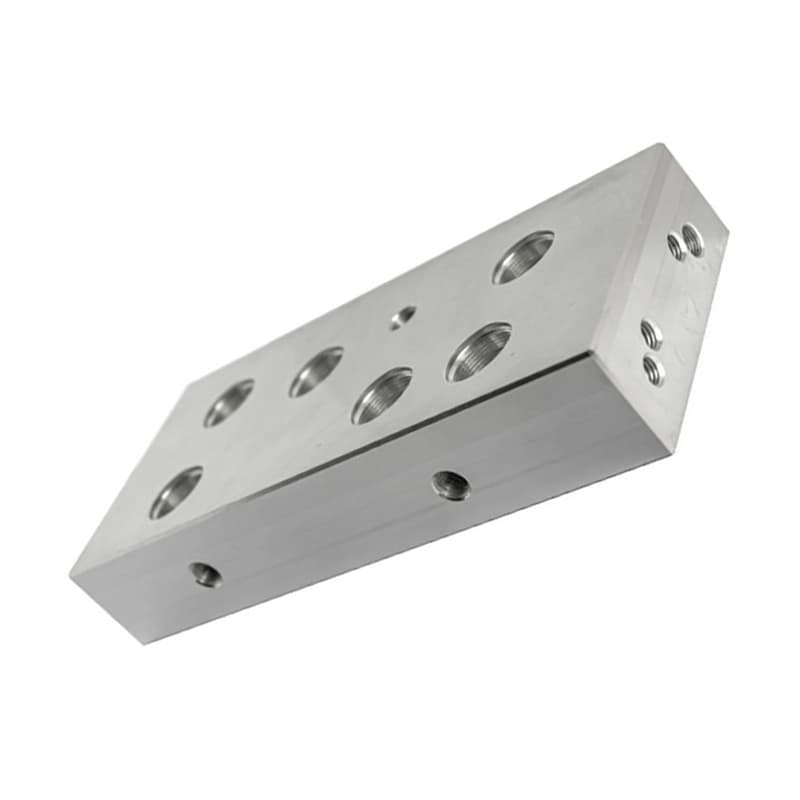

Role of CNC Rapid Prototyping: Fabricating custom threaded pipe fittings, specialized valve blocks, and manifolds in 316L Stainless Steel or Polypropylene (PP) ensures instant physical pressure testing before starting mass production.
3. Medical Devices & Optical Life Sciences
-
Requirements: Micron-level dimensions, smooth surface finishes, and biocompatible material handling.
-
Role of Rapid CNC Prototyping: Machining transparent PMMA fluidic channels or PEEK surgical guides through high-precision Rapid CNC prototyping provides immediate visibility into liquid flow dynamics and functional ergonomics.
Key Advantages of Rapid CNC Prototyping in Modern R&D
R&D cycles are shorter than ever. Integrating high-speed Rapid CNC prototyping into your product lifecycle offers strategic advantages:
-
Accelerated Time-to-Market: Multi-axis milling and turning centers produce functional CNC prototyping samples in as fast as 24–48 hours, dramatically shortening design validation cycles.
-
Production-Grade Material Flexibility: Unlike additive manufacturing, CNC rapid prototyping works directly with production materials—guaranteeing authentic thermal, mechanical, and chemical evaluations.
-
Uncompromised Precision & Thread Control: Non-standard features—such as custom thread profiles (precise root and crest contouring), deep internal bores, and mirror surface finishes—are achieved reliably in single setups.
-
Tooling-Free Low-Volume Production: The programming, fixtures, and toolpaths established during Rapid CNC prototyping scale directly into low-volume production runs with zero expensive tooling investment.
Why Choose Our Non-Standard CNC Manufacturing Services?
-
Speed & Agility: Fast-turn CNC rapid prototyping with functional samples delivered in as fast as 24 to 48 hours.
-
Micron-Level Precision: Swiss-type turning and 5-axis milling achieving strict dimensional tolerances down to $\pm 0.005\text{ mm}$.
-
Specialized Thread & Surface Control: Expert execution of non-standard thread profiles, specialized root/crest geometry, bead blasting, Type II/III anodizing, passivating, and micro-polishing.
-
Tooling-Free Low-Volume Production: Seamlessly transition from your initial CNC prototyping batch into low-volume production with zero tooling costs and total design consistency.
