OEM CNC machining service per customer’s drawings

OEM CNC machining service per customer’s drawings

When you need precision components tailored exactly to your unique specifications, OEM CNC machining service per customer’s drawings delivers a flexible, reliable solution to turn your design concepts into tangible, high-performance parts. Whether you are developing a new prototype, sourcing replacement components, or scaling up for full production runs, custom CNC machining aligns every step of the manufacturing process with your exact dimensional requirements, material preferences, and functional expectations. We work as an extension of your engineering and supply chain team, translating your design data into machined parts with consistent accuracy and dependable lead times.

Our Full Spectrum of Custom CNC Machining Solutions

As a provider focused on customer-driven manufacturing, we support a complete range of service models to match different project inputs and production goals.

CNC machining per drawing forms the foundation of our service. We accept all common 2D and 3D drawing formats, and our engineering team reviews every detail of your design — including tolerances, surface finishes, thread specifications, and geometric features — before production begins. This upfront review ensures manufacturability while preserving the full intent of your original design. We can work with both simplified schematic drawings and fully detailed models with geometric dimensioning and tolerancing, adapting our inspection criteria to match the level of precision defined in your documentation.

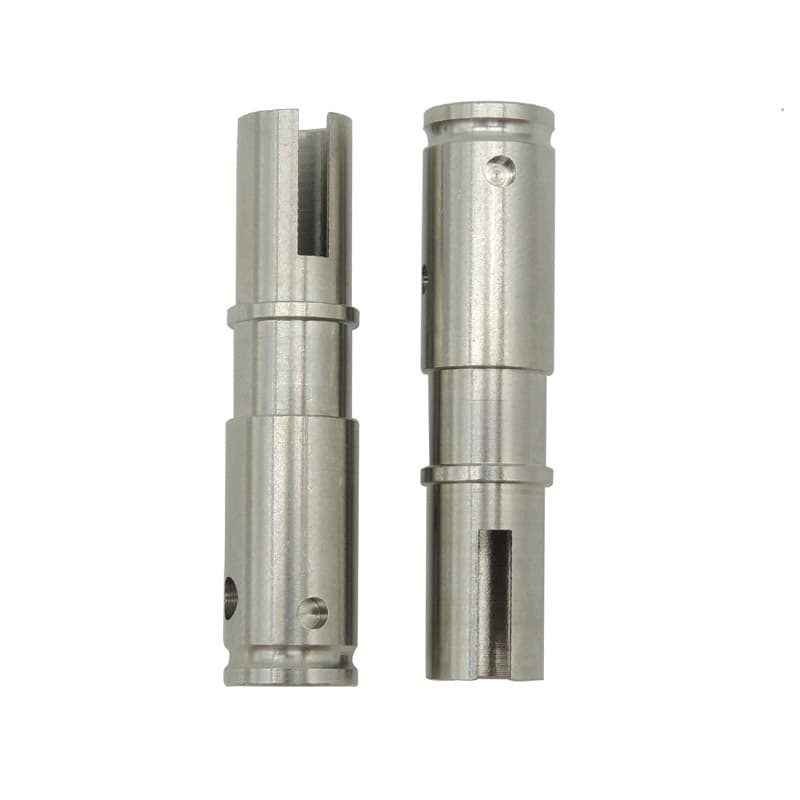

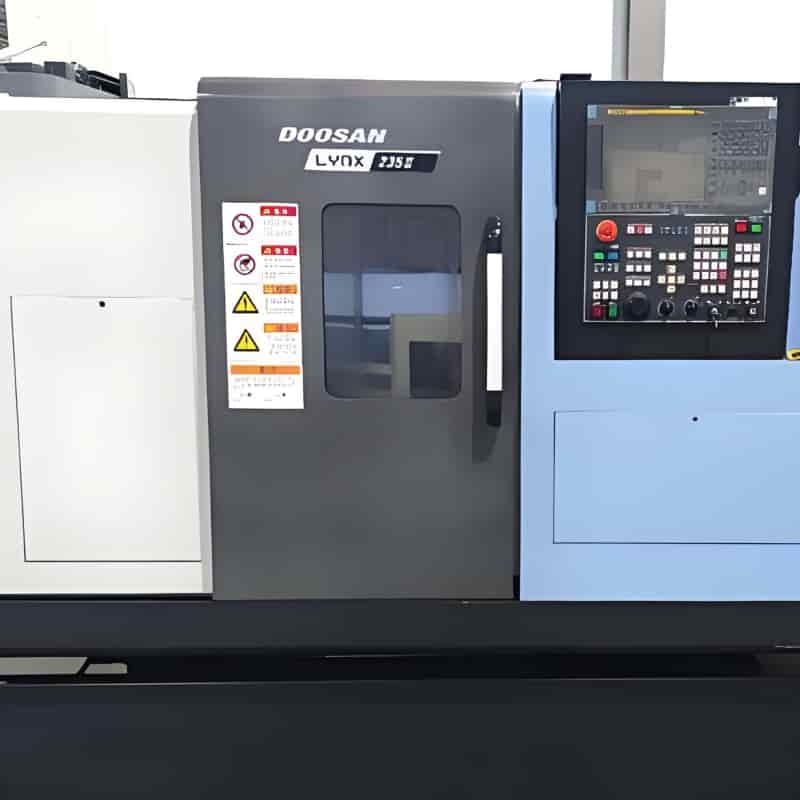

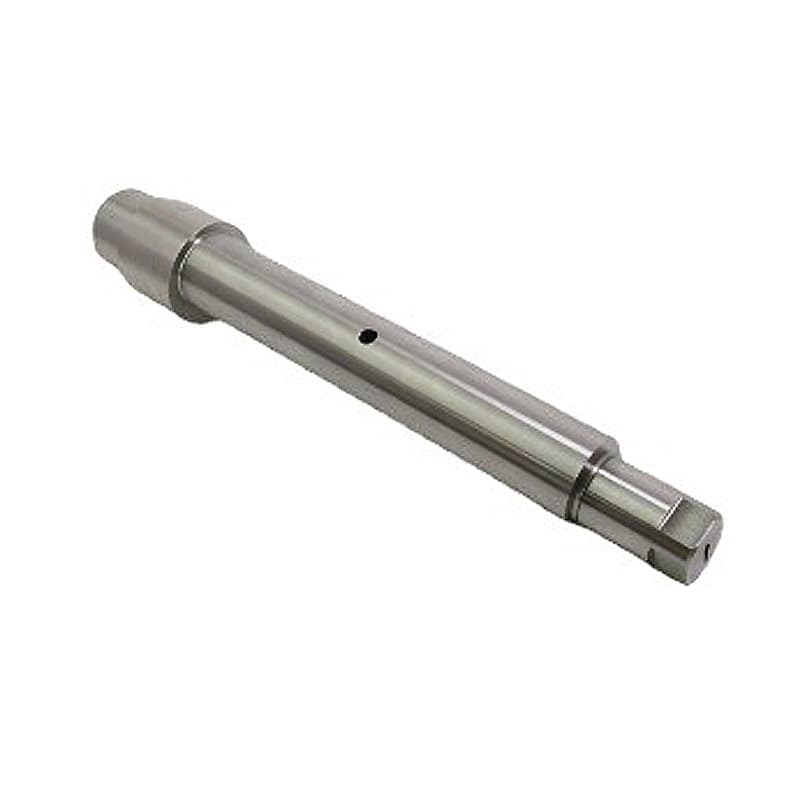

For rotational parts with high concentricity and surface finish requirements, custom CNC turning per drawing delivers exceptional precision. Our CNC lathes handle both simple straight shafts and complex multi-step turned components, maintaining consistent accuracy across features such as external and internal grooves, tapers, unified and metric threads, blind and through bore holes, and chamfers. We work closely with your drawing data to ensure every diameter, length, and tolerance matches your specification exactly, and we can produce both long, slender parts and short, compact turned components with equal reliability.

For prismatic parts with complex 3D geometries, pockets, slots, angled holes, and contoured surfaces, OEM CNC milling per customer drawings covers 3-axis, 4-axis, and 5-axis milling capabilities. We can produce everything from simple brackets, plates, and spacers to highly complex mold inserts, structural housings, and curved aerodynamic components, following your drawing dimensions and geometric tolerances down to the finest detail. Our multi-axis milling capabilities eliminate the need for multiple setups on complex parts, reducing lead time and improving positional accuracy across angled and compound features.

Beyond drawing-based production, we also offer custom machining to sample for customers who have existing physical parts but lack formal digital drawings. Our team can reverse-engineer your sample part using precision measurement equipment, capture all critical dimensions, functional features, and fit characteristics, and then produce matching or optimized components through our CNC machining processes. This service is ideal for replacement parts for legacy equipment, reproduction of obsolete components, and design refinement based on working physical prototypes. We can also modify existing sample designs to improve performance, reduce weight, or lower production cost while retaining core form and function.

Common Materials for CNC Machined Components

Our machining capabilities span a wide selection of metals and engineering plastics, allowing us to select the optimal material for your part’s application environment, mechanical requirements, and cost targets. All materials are sourced from established suppliers, and we can accommodate specific material grade requests as defined in your drawings.

Among ferrous metals, carbon steel and alloy steel are widely used for structural components, fasteners, and machinery parts that require high strength and wear resistance. We regularly machine grades such as 1018, 1045, 4140, and 4340 steel, each chosen for its specific balance of tensile strength, toughness, and machinability. Carbon steels offer cost-effective performance for general industrial applications, while alloy steels provide enhanced hardness and fatigue resistance for high-load power transmission components.

Stainless steel is a preferred choice for parts exposed to corrosion, moisture, or sanitary environments. We commonly work with 304 stainless steel for general purpose corrosion resistance in indoor and mild outdoor applications, 316 stainless steel for enhanced chemical and saltwater resistance in marine and industrial processing environments, and 303 stainless steel for improved machinability in high-volume turned parts. These materials are frequently selected for food equipment components, marine hardware, fluid handling valves, and outdoor industrial fixtures.

Aluminum alloys offer an excellent combination of light weight, good corrosion resistance, and high thermal conductivity. Our most frequently machined aluminum grades include 6061-T6 for general structural applications and automation equipment, 7075-T6 for high-strength aerospace and defense components, and 5052 for sheet metal derived parts and formed enclosures. Aluminum is ideal for equipment housings, heat sinks, electronic enclosures, lightweight structural brackets, and thermal management components.

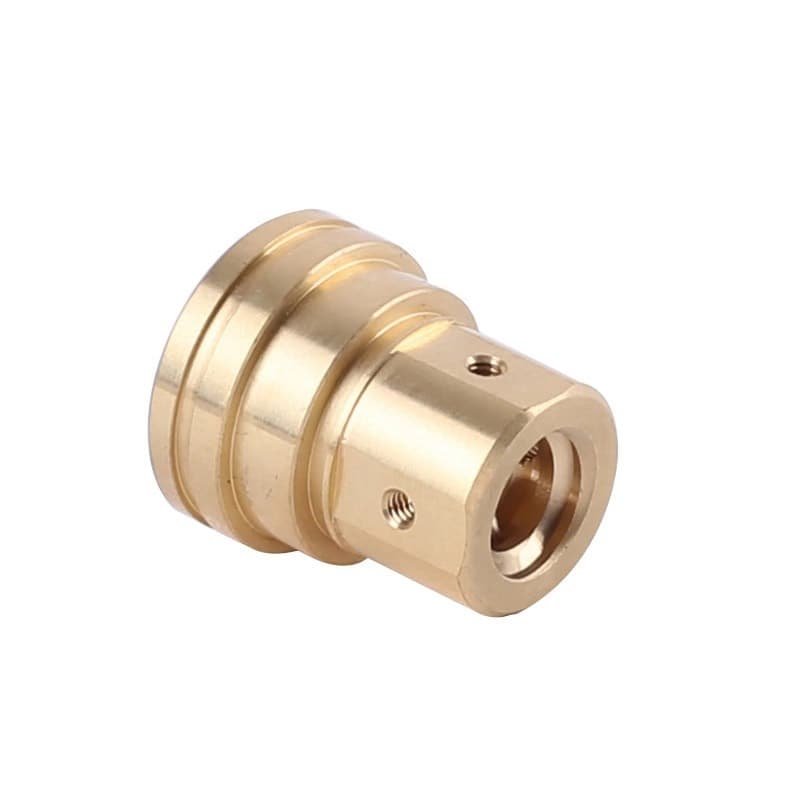

Copper and copper alloys bring superior electrical and thermal conductivity to machined components. We work with free-machining brass grades such as C360 and CZ121 for valves, fittings, connectors, and decorative hardware; tin bronze and aluminum bronze for bearings, bushings, and wear-resistant components; and pure copper for electrical contacts, bus bars, and heat transfer parts. Each copper alloy offers distinct advantages in conductivity, corrosion resistance, and machinability, and we can select the appropriate grade based on your functional requirements.

For applications requiring light weight, chemical resistance, electrical insulation, or low friction, we machine a full range of engineering plastics. These include PEEK for high-temperature, high-strength industrial and medical components; ABS for housings, enclosures, and cosmetic parts with good impact resistance; POM (acetal) for precision gears, bearings, and low-friction sliding components; nylon for wear-resistant bushings, rollers, and structural parts; and HDPE and UHMWPE for chemical processing components and food contact applications. We can also work with specialty plastics such as PTFE and PVDF for extreme chemical resistance requirements.

Typical Parts We Manufacture

Our OEM CNC machining service per customer’s drawings supports the production of a vast range of component types across multiple industries. Each part is produced to your exact drawing requirements, with attention to both functional performance and cosmetic finish where specified.

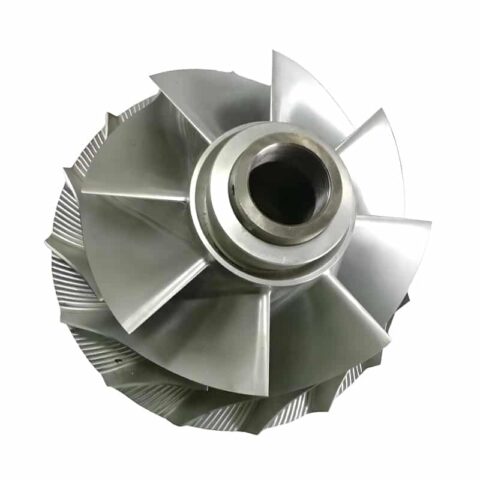

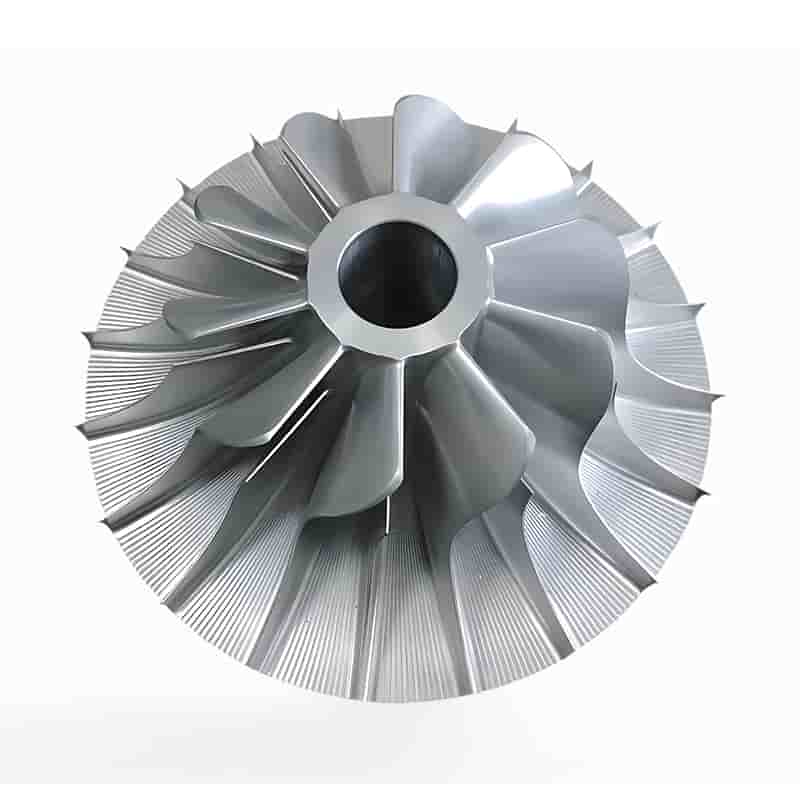

In the industrial machinery and power transmission sector, we regularly produce spur gears, helical gears, worm gears, worm shafts, sprockets, pulleys, keyed shafts, and spline components. We also machine valve bodies, valve stems, hydraulic manifolds, pump housings, compressor impellers, and cylinder components that require precise internal bores, tight tolerances, and smooth surface finishes to ensure reliable fluid control and power transfer.

For automation and robotics equipment, we manufacture custom mounting brackets, base plates, linear guide components, connector housings, jigs, fixtures, and end-effector parts. These components often require tight positional tolerances and consistent repeatability to integrate seamlessly with automated assembly systems and production line equipment.

In the automotive and transportation sector, we produce custom machined engine components, suspension hardware, brake system parts, chassis brackets, and interior fixture components. We support both aftermarket replacement parts and custom build projects, adapting our processes to match volume, precision, and finish requirements.

For fluid and pneumatic systems, we machine a wide variety of threaded fittings, adapters, nozzles, ferrules, and cylinder end caps. These parts often require precise thread forms, internal sealing surfaces, and pressure-rated geometries to maintain leak-free performance under operating conditions. We can produce both standard and custom thread profiles as defined in your drawings.

We also produce custom fasteners, pins, bushings, spacers, standoffs, and washers in various sizes and materials, as well as specialty components for medical devices, electronic equipment, marine hardware, packaging machinery, and consumer products. No matter how simple or complex your part design, we can produce it according to your drawing specifications and functional needs.

From Single Prototypes to High-Volume Production

One of the core advantages of our custom CNC machining service is its scalability. We support production quantities ranging from a single prototype part all the way to large-scale mass production, with consistent quality and cost efficiency at every volume level.

For single-piece and low-volume prototype runs, we prioritize fast turnaround and design flexibility. Single-part production is ideal for design verification, functional testing, fit checks, and concept validation. Our setup processes are optimized for quick changeovers, allowing us to produce one-off parts without the high tooling costs and long lead times associated with other manufacturing methods. We can also support rapid design iterations based on your test results, adjusting machining parameters or modifying part features as your design evolves.

For small to medium production batches — typically from several dozen to several hundred parts — we balance speed, precision, and unit cost. We refine our machining processes and develop dedicated fixturing to reduce cycle times while maintaining strict dimensional consistency across every part in the batch. This volume range is well suited for pilot production runs, custom equipment builds, specialty machinery replacement parts, and ongoing low-volume supply contracts.

For high-volume production runs of thousands to tens of thousands of parts, we implement optimized process flows, dedicated work cells, and proven CNC machining programs to achieve maximum efficiency and consistent part quality. We carefully monitor process parameters and perform regular dimensional sampling checks to ensure that every part produced matches your drawing specifications, even over extended production runs. Our volume production capabilities help you reduce per-unit costs while ensuring reliable, on-time supply to support your ongoing operations and product demand.

Our Customer-Focused Manufacturing Process

Every project begins with a thorough review of your drawings, samples, and project requirements. Our engineering team evaluates manufacturability, identifies potential design challenges, and recommends process adjustments if needed to improve performance, reduce production cost, or shorten lead time — all while preserving your core design intent. We communicate openly about any design considerations or alternative approaches, so you can make informed decisions about your project.

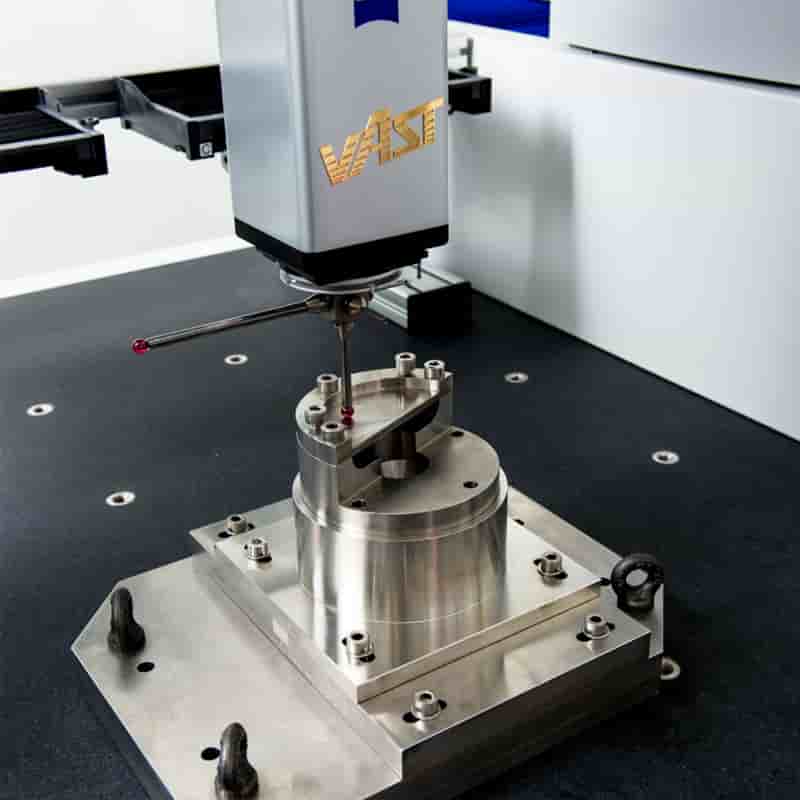

Once the production plan is finalized and approved, we prepare the necessary cutting tools, workholding fixturing, and CNC programming. For first-article production, we perform comprehensive dimensional inspection using calibrated precision measuring equipment to verify that all features match your drawing specifications before proceeding to full production. This first-article validation step ensures that the production process is fully capable of meeting your requirements before any additional parts are manufactured.

Throughout the manufacturing process, our experienced machinists and quality control personnel conduct regular in-process inspections to ensure ongoing conformance to your tolerances and surface finish requirements. We maintain detailed process records for each order, ensuring consistency across repeat orders and future production runs.

Finally, finished parts undergo careful deburring, cleaning, and packaging preparation. We can accommodate custom packaging requirements, part marking, and secondary operations such as tapping, reaming, and sub-assembly as specified in your order. All parts are packaged to protect against damage during transit, ensuring that your components arrive in ready-to-use condition.

Whether you need custom CNC turning per drawing for precision shafts, OEM CNC milling per customer drawings for complex structural parts, or custom machining to sample for legacy component reproduction, we have the capabilities, expertise, and flexibility to meet your needs. Our commitment to precision, reliability, and customer satisfaction makes us a trusted partner for all your CNC machining requirements.

Contact us today with your drawings or sample parts, and let us discuss how our OEM CNC machining service per customer’s drawings can bring your project to life with accuracy, efficiency, and outstanding value.
