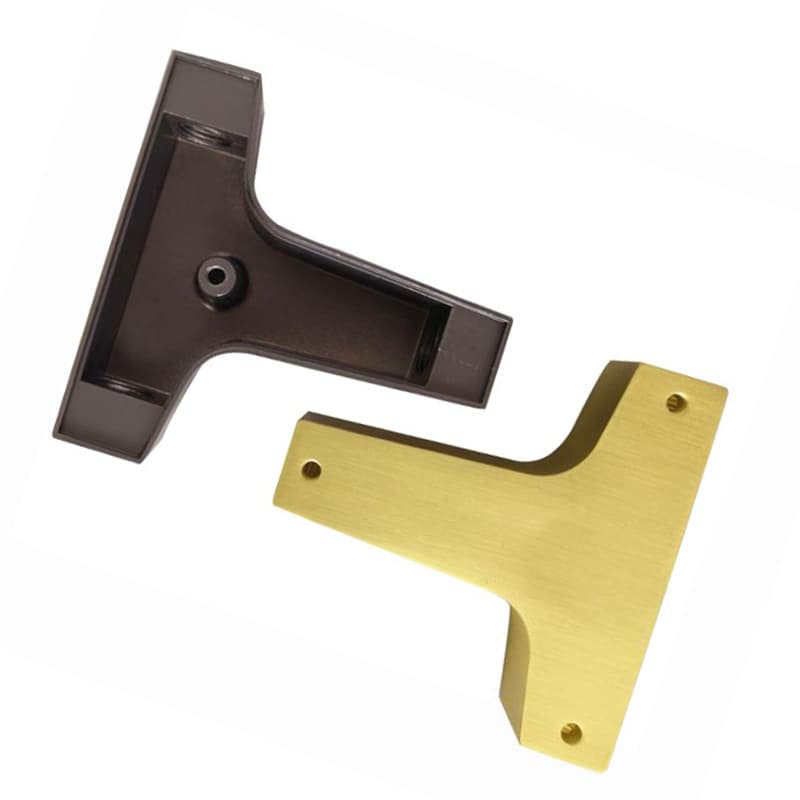

Custom Zinc Die Casting Parts & Electroplated Components

Zinc die casting parts, zamak die casting components, chrome plated zinc parts, thin wall zinc casting, custom lock hardware casting

Category:

Precision Custom Zinc Die Casting Parts for Multi-Industry Applications

When intricate geometries, thin wall sections, and flawless decorative or functional finishes are required, custom zinc die casting parts deliver unmatched performance. As a specialized manufacturer of custom non-standard components, we provide comprehensive manufacturing services for precision zinc die casting parts—combining high-pressure casting, multi-axis CNC machining, and premium surface finishing to satisfy demanding engineering requirements worldwide.

Multi-Industry Applications & Functions

Due to zinc’s exceptional fluidity, high impact strength, and self-lubricating properties, zinc die casting parts serve vital roles across a wide range of demanding sectors:

Industry Sector Custom Components Core Functions & Engineering Requirements Common Alloy Grades
Smart Home & Security Door lock housings, latch mechanisms, deadbolts, biometric sensor frames High Strength & Anti-Theft: Heavy-duty mechanical strength, tight locking tolerances, and high-end electroplated aesthetics. Zamak 3 / Zamak 5
Consumer Electronics USB connector shells, audio jack housings, wearable structural frames, camera brackets Ultra-Thin Walls & EMI Shielding: Allows wall thicknesses down to 0.5mm, precise interior mounting bosses, and effective signal shielding. Zamak 3 / Zamak 2
Automotive & Hardware Seatbelt retractors, door latch assemblies, mirror bracket mounts, interior trim knobs Wear Resistance & Structural Rigidity: High fatigue resistance, dimensional stability, and smooth mechanical operation. Zamak 5 / ZA-8
Plumbing & Sanitary Faucet handle levers, valve bodies, shower head mounts, pipe fittings Pressure Tightness & Corrosion Resistance: Dense cast structure prevents fluid leakage and supports bright chrome electroplating. Zamak 3
Electrical & Industrial Cable glands, switchgear components, sensor enclosures, cabinet locks Electrical Conductivity & Precise Fit: Secure thread engagement, environmental sealing, and vibration resistance. Zamak 3 / Zamak 5

Key Advantages of Our Custom Manufacturing Services

To meet strict non-standard specifications, we integrate tooling design, high-speed casting, CNC secondary processing, and surface finishing into a streamlined production workflow:

  • Complex Thin-Wall Capability: Zinc’s superior castability enables complex net-shape geometries with extremely thin walls and tight draft angles, reducing material usage and part weight.

  • Premium Surface Finishing: Excellent substrate quality allows for flawless post-treatments, including decorative chrome, satin nickel, black e-coating, powder coating, and custom plating.

  • Precision Secondary CNC Machining: Post-casting, our multi-axis CNC machining centers finish critical threads, sealing faces, and bearing seats to tolerances of ±0.005mm.

  • Extended Tooling Life & Cost Efficiency: Lower casting temperatures significantly reduce thermal shock on dies, yielding mold lifespans exceeding 500,000 to 1,000,000 cycles for lower per-part costs.

  • Comprehensive Quality Assurance: Every shipment undergoes rigorous testing, including CMM dimensional checks, salt spray corrosion testing, plating thickness measurement, and leak testing.

Production Process for Custom Zinc Die Casting Parts

  1. Design & DFM Analysis: Analyzing 2D/3D CAD models to optimize wall uniformity, gate locations, and parting lines via mold flow software.

  2. Precision Mold Tooling: Engineering high-grade steel molds capable of high-volume, repeatable production runs.

  3. Automated High-Speed Die Casting: Utilizing automated hot-chamber die casting machines for rapid cycle times and high-density material structure.

  4. Precision CNC Machining & Trimming: Automated de-burring followed by CNC milling, drilling, and tapping for exact functional features.

  5. Surface Coating & Final Inspection: Applying electroplating or painting, followed by 100% critical-dimension checks and protective export packaging.

Partner with Us for Your Non-Standard Projects

Whether you need rapid prototyping, low-volume pilot runs, or high-volume mass production, our engineering team is ready to assist. Send us your 2D/3D drawings today to receive a complete DFM evaluation and competitive price quotation for your custom zinc die casting parts.
