Expert custom CNC machining of non-standard flanges and connection components for industrial automation, robotics, and semiconductor equipment. High precision, strict tolerance, global delivery.
In modern high-end mechanical equipment, intelligent automation lines, semiconductor manufacturing, fluid control systems, and robotic architectures, components containing terms like “Flange,” “Flange Plate,” “Connection Base,” “Adapter Plate,” and “Flange Sleeve” are ubiquitous. Serving as core structural elements for load-bearing, positioning, sealing, alignment, and rigid coupling, these non-standard parts play a decisive role in overall operational stability and equipment lifespan.
As a professional custom CNC machining manufacturer, we specialize in solving complex geometric designs, special material demands, and strict tolerance requirements for flange-type parts. Below is an exhaustive overview of our material matrix, precision machining processes, and extensive industry applications.
I. Comprehensive Material Matrix (Metals & Engineering Plastics)
To meet rigorous demands for mechanical strength, wear resistance, corrosion resistance, electrical insulation, or lightweight design across diverse working environments, we support high-precision cutting for a broad spectrum of materials:
-
Stainless Steel Series: 304, 316, 316L, 17-4PH, 310S, 321, offering exceptional acid/alkali resistance, corrosion protection, and high-temperature performance for medical devices, chemical fluid systems, and food processing machinery.
-

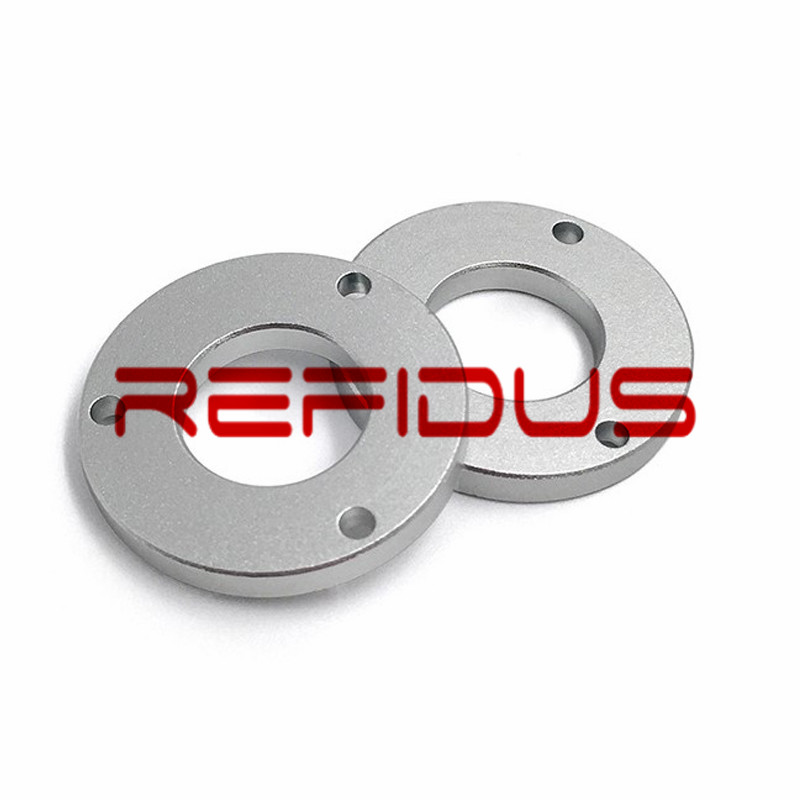

Aluminum Alloy Series: 6061-T6, 7075-T6, 5083, 2024, providing low density, high strength-to-weight ratio, excellent thermal conductivity, and optimal response to anodizing, making them ideal for automation equipment and humanoid robot lightweight flanges.
-
Carbon & Alloy Steel Series: 45# steel, 40Cr, 20CrMnTi, Q355B, 42CrMo, capable of achieving superior tensile strength and impact toughness through thermal treatments like quenching and tempering.
-
Copper & Copper Alloys: Brass (H59/H62), Pure Copper (T2), Tin Bronze (QSn6.5-0.1), Beryllium Copper, delivering outstanding electrical conductivity, thermal performance, and anti-friction wear properties.
-
High-Performance Engineering Plastics: POM (Polyoxymethylene/Acetal), PMMA (Acrylic), PP (Polypropylene), PEEK (Polyether Ether Ketone), PTFE (Polytetrafluoroethylene/Teflon), PA6/PA66 (Nylon), perfectly suited for electrical insulation, oil-free lubrication, ultra-low temperatures, or highly corrosive environments.
II. Advanced Non-Standard CNC Machining Processes & Technical Strengths
Faced with complex non-standard geometries, multi-directional hole layouts, and tight tolerances, we deploy multi-axis manufacturing systems to ensure high-efficiency and high-precision delivery for every component:
-
CNC Turn-Milling Compound Machining: Completes external turning, facing, complex eccentric hole patterns, keyways, and flange face threading in a single setup, eliminating cumulative clamping errors and guaranteeing exceptional coaxiality and position tolerance.
-

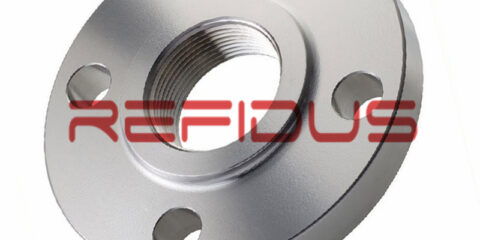

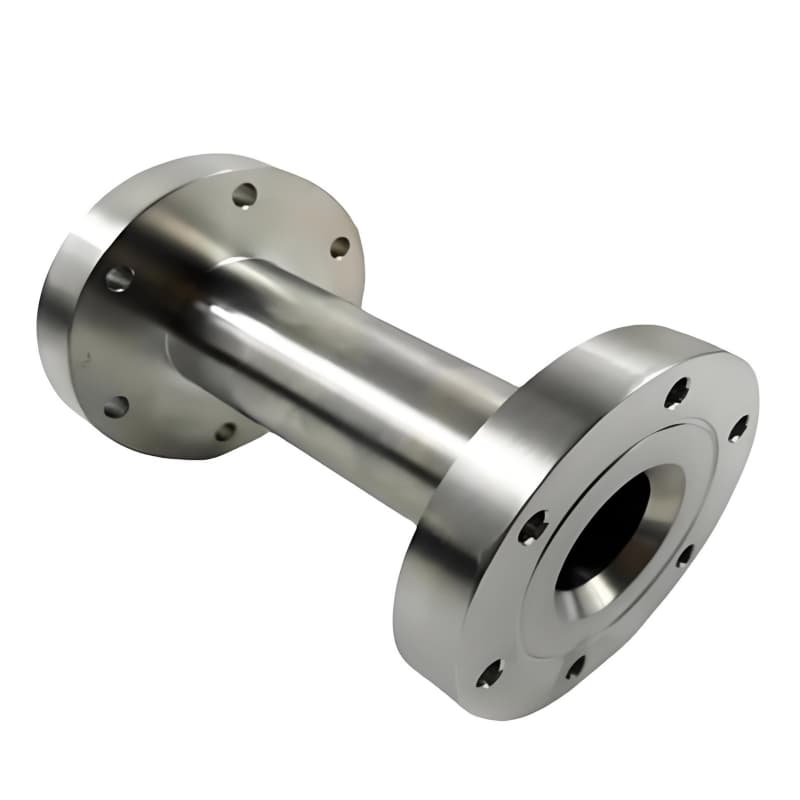

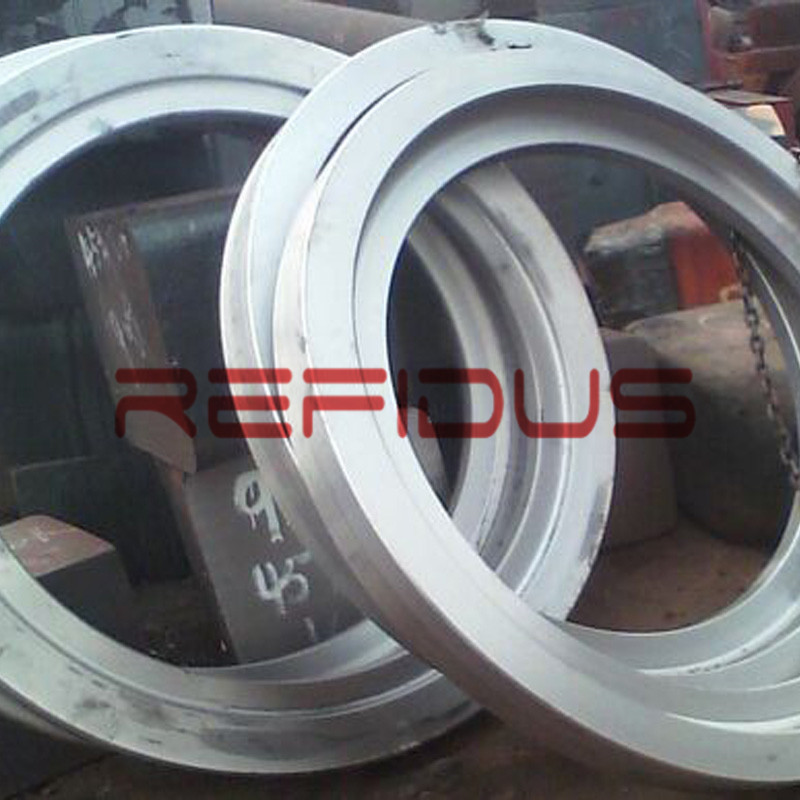

High-Precision CNC Turning: Specializes in processing rotary neck flanges, slip-on/blind flanges, stepped shaft flanges, and specialized turned sleeves or discs.
-

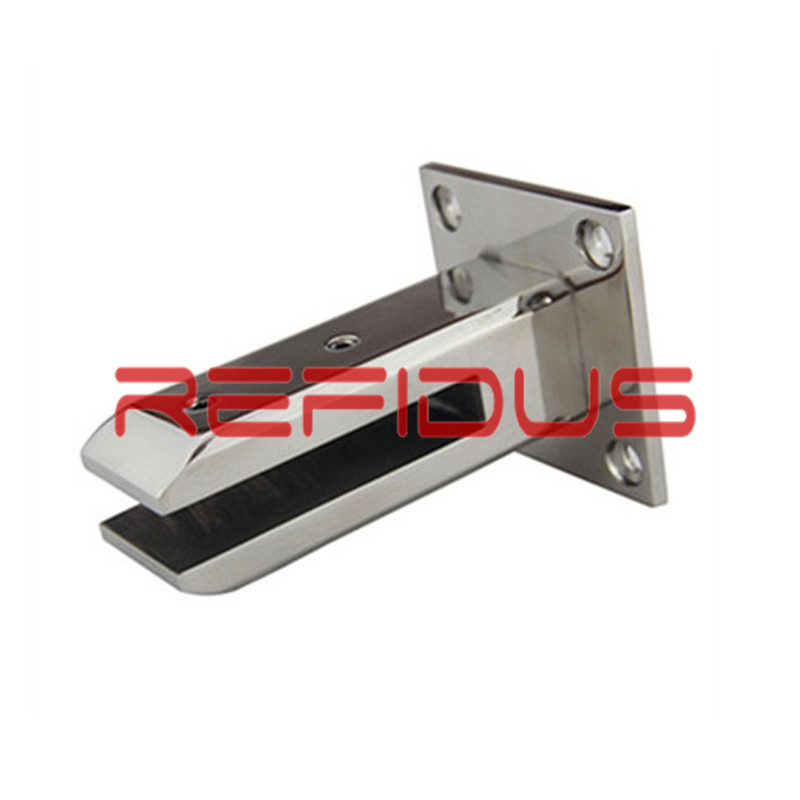

Multi-Axis CNC Milling: Efficiently cuts square flanges, polygonal connection bases, complex fluid channels, counterbores, slot holes, and multi-directional mounting apertures.
-

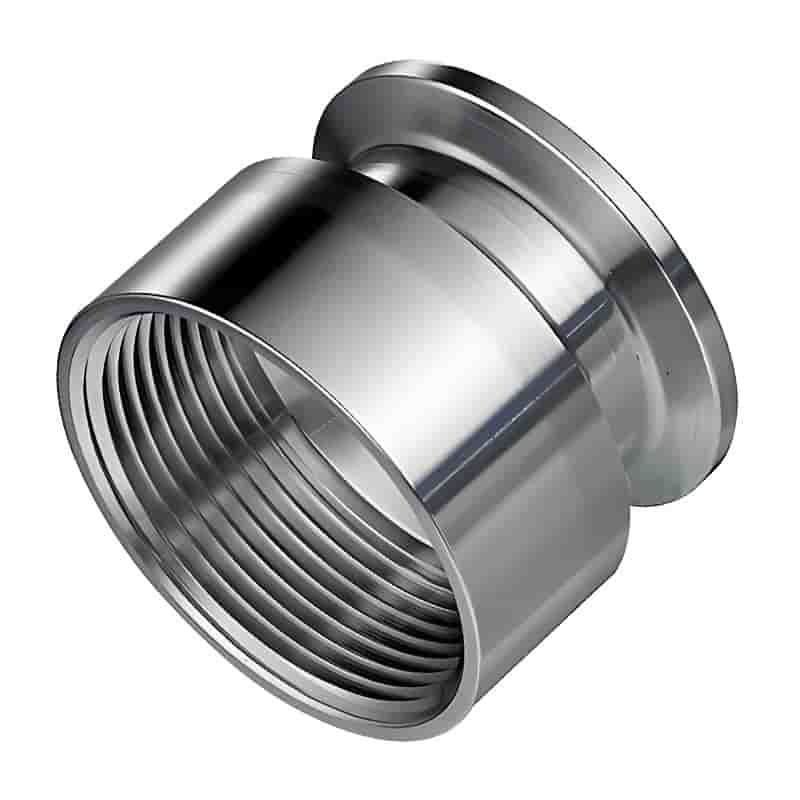

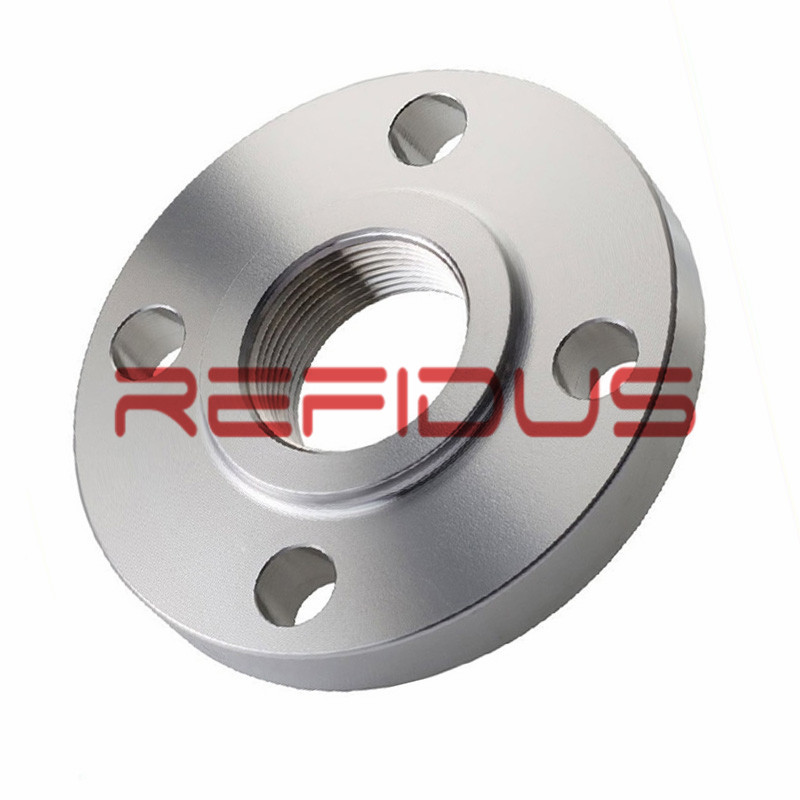

Thread & Micro-Structure Precision Control: Strict precision control over thread root and crest geometry, flank angles, and fit accuracy (supporting metric, imperial, and NPT/G pipe threads) to ensure reliable sealing and anti-loosening properties.
-
Precision Hole Boring & Reaming: Deep-hole drilling and precision boring capabilities achieving surface roughness up to Ra 0.4 or finer.
-
Comprehensive Surface Finishes: In-house and partner-supported surface treatments including hard anodizing (clear, colored, or hardcoat), chemical passivation, electroless nickel plating, zinc plating, blackening, bead blasting, wire drawing, and mirror polishing to enhance weatherability and wear resistance.
III. Deeply Integrated Industries & Typical Flange Component Nomenclature
Our custom non-standard flange solutions are deeply embedded across cutting-edge manufacturing sectors. The table below outlines typical applications and part designations:
| Industry Sector | Core Flange & Connection Component Names | Typical Application Scenarios & Functions |
| Industrial Automation & Robotics | Robot reducer flanges, servo motor adapter plates, joint adapter discs, end-effector flanges, slider connection flanges | Provides zero-backlash rigid coupling and precise alignment for RV/harmonic reducers, servo motors, and robotic arm joints. |
| Fluid & Vacuum Systems | Vacuum chamber flanges, KF/CF quick-release flanges, ISO flanges, blind flanges, valve connection pieces | Ensures ultra-high vacuum integrity, high-pressure containment, and quick-disassembly maintenance in fluid or gas lines. |
| New Energy, Lithium Battery & PV | Photovoltaic equipment positioning flanges, lithium tab adapter flanges, coating machine pneumatic flanges, insulating thermal barriers | Operates reliably under high temperatures, high speeds, or electrical isolation demands in clean energy manufacturing. |
| Semiconductor & Cleanroom Equipment | Special gas piping flanges, ultra-high-purity fluid flanges, quartz/engineering plastic insulating flange plates, chamber sealing bases | Meets extreme airtightness, cleanliness, and purity requirements for semiconductor cleanrooms and specialty gas delivery. |
| Medical Devices & Optical Instruments | Medical pump flanges, optical lens fixing flange seats, laser equipment adapter discs, micro-pneumatic flange components | Delivers micron-level dimensional control and minimal deformation to guarantee optical alignment and sterile fluid transport. |
IV. Rigorous Quality Control & Service Commitments
-
Advanced Inspection Equipment: Equipped with Coordinate Measuring Machines (CMM), 2D optical image projectors, height gauges, outside micrometers, and professional thread plug/ring gauges to perform 100% or strict batch inspections on coaxiality, flatness, perpendicularity, and hole spacing.
-
Flexible Manufacturing Modes: No limitations on drawing complexity; we accommodate everything from single-piece prototyping and low-volume high-mix production to agile high-volume manufacturing.
-
Engineering & Technical Support: Experienced engineering teams assist clients with drawing optimization, Design for Manufacturability (DFM) analysis, tolerance stacking reviews, and material selection.
If you have any custom requirements for non-standard flanges, adapter plates, connection bases, flange sleeves, or precision machined components, feel free to send your drawings (PDF/STEP/IGES formats) or technical specifications. We are ready to provide competitive pricing and professional engineering solutions.
