Custom Aerospace CNC Machining Services & Parts OEM

In the aerospace industry—where mechanical components must withstand extreme thermal shifts, intense vibrations, and zero-margin-for-error operating conditions—custom aerospace cnc machining serves as the foundation for modern aviation and space exploration hardware. From high-temperature jet engine assemblies to high-pressure hydraulic fluid lines and satellite propulsion systems, specialized custom aerospace cnc machining services deliver the structural integrity, dimensional precision, and fluid tightness required for mission-critical applications.

Critical Roles of CNC Machined Components in Aerospace

Modern aircraft and spacecraft rely on thousands of non-standard, highly customized machined parts. Each subsystem demands tailored geometry, tight tolerances, and specialized metallurgy to guarantee zero failure under high G-forces and extreme operating pressures.

1. Hydraulic, Fuel, and Fluid Delivery Systems

Fluid management systems in aircraft and launch vehicles operate under immense pressures (up to 5,000+ PSI) and extreme thermal gradients. High-precision custom aerospace cnc machining is essential for manufacturing leak-proof, high-fatigue fluid control hardware.

• Custom Aerospace Threaded Pipe Fittings: Custom CNC-turned fittings with precision-machined threads (such as AS8879, UNJ/UNR controlled-root threads, AN/JIC, and NPTF) manufactured via custom aerospace cnc machining to eliminate stress concentrations under severe vibration.

• High-Pressure Pipe Adapters, Unions, and Tees: Engineered for tight spatial constraints inside engine bays and airframe utility channels, offering high strength under dynamic loads.

• 37-Degree Flared and O-Ring Boss (ORB) Connectors: Machined with micro-finished sealing faces ($Ra < 0.4\ \mu\text{m}$) ensuring metal-to-metal zero-leakage performance for aviation hydraulic lines and cryogenic rocket propellants.

• Hydraulic Control Manifolds: Multi-port 3D internal cross-drilled blocks that route fluid to flight surfaces, landing gear actuators, and braking systems.

• Cryogenic Fluid Couplings: Custom stainless steel (15-5 PH, 316L) and Inconel threaded fittings engineered to maintain sealing integrity at temperatures near absolute zero.

2. Propulsion and Jet Engine Systems

Turbine engines and rocket thrusters operate under intense combustion forces and thermal stress. Advanced custom aerospace cnc machining solutions produce engine components with aerodynamic perfection and high heat resistance.

• Turbine Blades and Vanes: Machined from single-crystal nickel superalloys to maintain structural stability at temperatures exceeding 1,000°C.

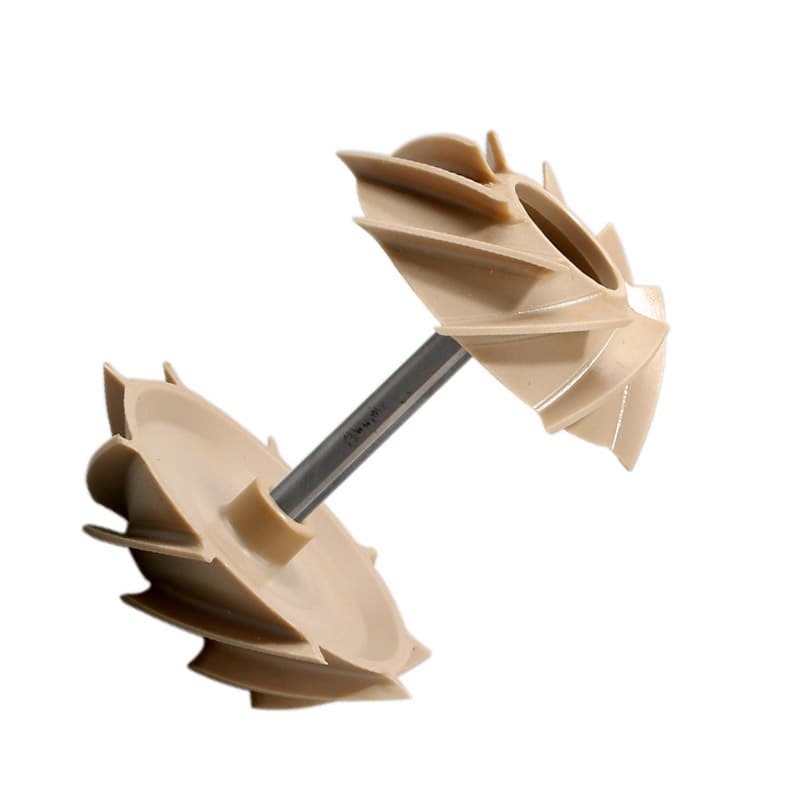

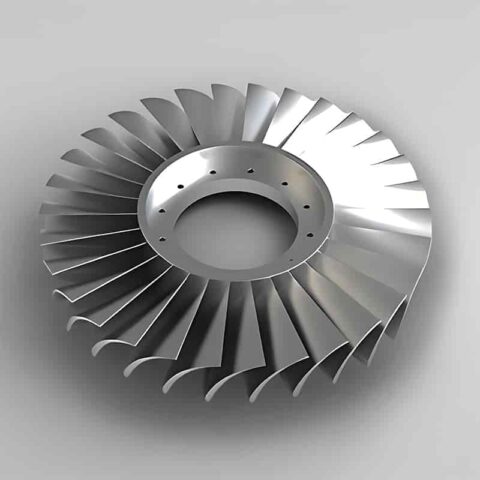

• Impellers and Blisks: Integrated bladed disks machined via simultaneous 5-axis milling to eliminate assembly weight and dynamic balance risks.

• Fuel Injection Nozzles and Manifold Fittings: Micro-machined internal flow paths and fine-pitch threaded ports ensuring precise atomization and fuel delivery.

3. Structural Airframe and Flight Control

Weight reduction and high strength-to-weight ratios are paramount in aerospace structural design. Utilizing custom aerospace cnc machining, engineers convert complex CAD models into lightweight structural skeletons.

• Wing Spars and Ribs: Deep-pocketed, thin-wall aluminum structures designed to withstand flexural and torsional loads during high-stress maneuvers.

• Bulkheads and Engine Mounts: Heavy-duty titanium forgings machined to micro-level tolerances to support jet engines and distribute airframe loads.

• Landing Gear Actuator Brackets and Hinge Pins: High-strength steel and titanium linkages built to absorb massive impact loads upon touchdown.

4. Avionics Enclosures and Sensor Housings

Sensitive flight electronics demand electromagnetic shielding, effective thermal management, and rugged mechanical protection.

• EMI/RFI Shielded Cabinets: CNC-milled aluminum enclosures with precision-machined gasket channels to protect electronics from radiation and interference.

• Cold Plates and Liquid Cooling Heat Sinks: Deep-pocketed liquid cooling plates engineered to pull heat away from high-density radar units and onboard computers.

• Sensor Housings and Port Adapters: Precision-bored enclosures and threaded mounting ports for gyroscopes, accelerometers, and pitot-static sensors requiring sub-micron concentricity.

Aerospace Materials Selection and Engineering Standards

Selecting the appropriate material and thread profile is critical in custom aerospace cnc machining to prevent stress corrosion cracking, fatigue failure, and pressure loss.

Technical Deep-Dive: Precision Threaded Pipe Fittings for Aerospace

Machining threads for aerospace pipe fittings requires far higher precision than standard commercial piping. Through specialized aerospace cnc machining workflows, thread geometry is controlled to strict standards:

• UNJ / UNR Controlled Root Threads (AS8879 Standard): Features an enlarged, smooth root radius to reduce notch stress concentrations by up to 30% compared to standard UN threads. Single-point CNC turned or precision thread-milled to eliminate micro-burrs and micro-cracks.

• High-Concentricity and Pitch Diameter Tolerances: Pitch diameter tolerances controlled within Class 3A and 3B standards. Thread-to-bore concentricity maintained within ±0.005 mm, ensuring uniform distribution of hydraulic load across all active threads.

• Anti-Galling Treatments and Surface Finishing: Stainless steel and titanium threads are subject to severe galling during assembly under high torque. Post-machining surface treatments include Passivation (ASTM A967), Silver Plating, Dry Film Lubrication (MoS2), and Type III Hardcoat Anodizing.

Custom Aerospace CNC Machining Capabilities and Services

As a dedicated precision machining manufacturer, we specialize in low-volume prototypes through full-scale production runs of complex, non-standard aerospace components and custom threaded pipe fittings.

• Multi-Axis CNC Milling and Swiss Turning: 5-axis CNC machining centers and multi-spindle Swiss-type turning machines for single-setup processing of complex geometry fittings, cross-drilled internal passages, and compound angles.

• Micro-Tolerance Machining: Standard machining tolerances maintained down to ±0.002 mm (±0.0001 in), with critical sealing surfaces polished to mirror finishes.

• Non-Standard and Tailored Geometries: Fully customized thread pitches, non-standard pipe diameters, custom angle elbows (e.g., 30°, 60°, 75°), and custom reducer adapters built strictly according to client CAD drawings.

• Quality Assurance and Traceability: AS9102 First Article Inspection (FAI) reports for complete dimensional traceability, optical thread profiling, CMM inspection, and hydrostatic/pneumatic pressure testing to guarantee leak-proof performance.

Whether you require prototype threaded fittings, high-pressure hydraulic adapters, or complex multi-axis structural components, our custom aerospace cnc machining services deliver the reliability, speed, and precision required by aviation and defense engineering teams worldwide. Contact our engineering team today with your 2D and 3D CAD files for a complete quote and technical review.
