Precision Custom CNC Machining Services for 17-4PH Stainless Steel (1.4542 / SUS630)

In high-end mechanical manufacturing and precision engineering, 17-4PH (Precipitation Hardening Stainless Steel) stands out as an all-around material choice due to its high strength, superior hardness, excellent corrosion resistance, and low distortion during heat treatment. As a specialized manufacturer focused on non-standard custom CNC machining, we deliver end-to-end manufacturing solutions—from single-piece prototyping to full-scale OEM batch production.

Global Material Standards & Equivalent Grades

We process 17-4PH components according to international engineering drawings and material specifications:

Key Performance Advantages of 17-4PH

• Tunable Mechanical Strength: Mechanical properties are customizable via age hardening (Condition A, H900, H1025, H1150, H1150D). Tensile strength ranges from 930 MPa up to 1310 MPa (190 ksi), with hardness reaching 28–45 HRC.

• 304-Level Corrosion Resistance: Alloying with 17% chromium and 4% copper grants reliable resistance against atmospheric corrosion, dilute acids, salts, and pitting.

• Minimal Thermal Distortion: Low-temperature aging (480°C to 620°C) minimizes phase-change expansion, making it ideal for tight-tolerance, complex components.

• Excellent Machinability: Machinable in Solution Treated state (Condition A) prior to age hardening for reduced tool wear and high surface finish quality.

Our 17-4PH CNC Machining Capabilities

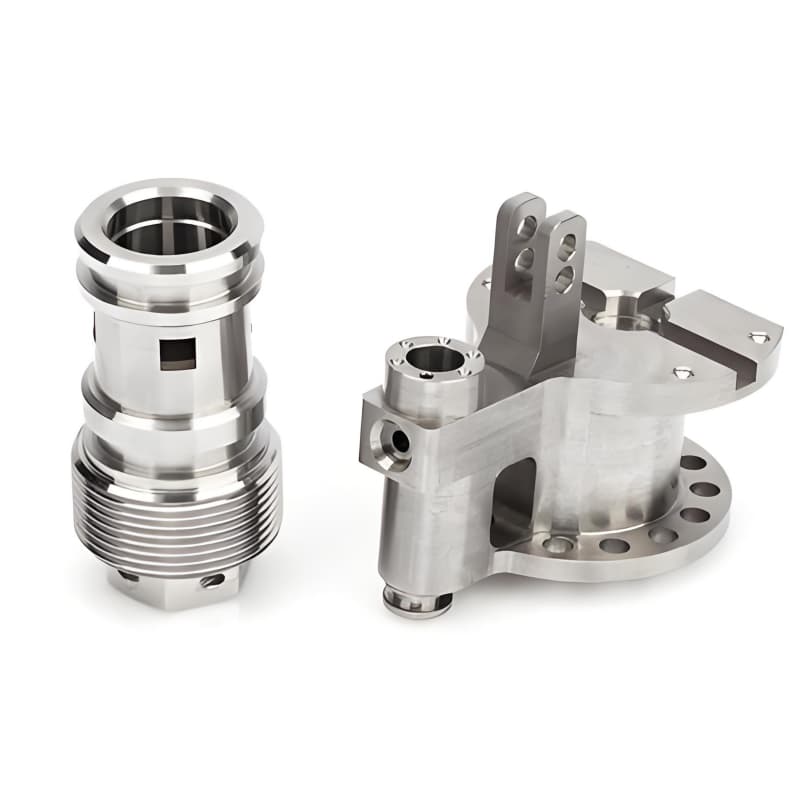

• 5-Axis & 4-Axis CNC Milling: Precision milling for complex geometries, deep cavities, and structural brackets with tolerances down to ±0.005 mm (±0.0002 in).

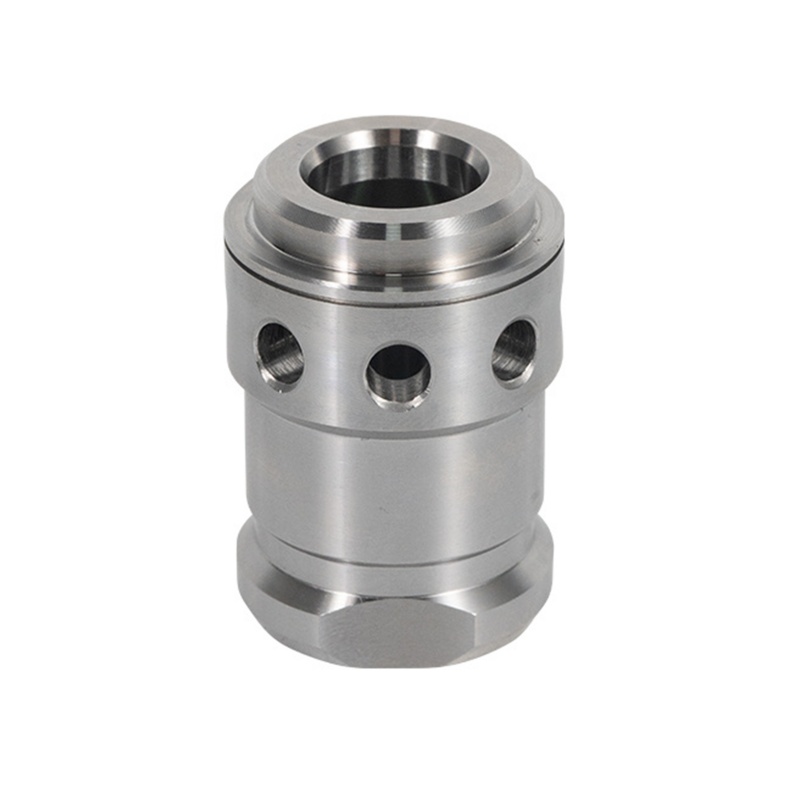

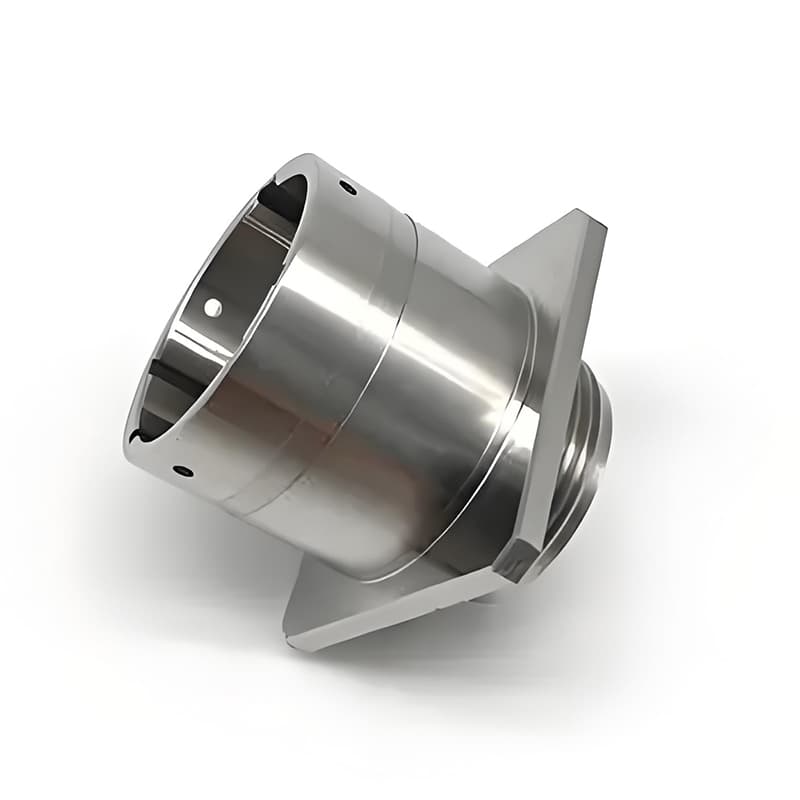

• Swiss Machining & CNC Turning: High-efficiency turning for slender shafts, valve spools, threaded fittings, and pinions in a single setup.

• In-House Heat Treatment & Precipitation Hardening:

  • Condition A: Solution annealed for initial heavy machining.

  • H900: Maximum strength and hardness (40–44 HRC) for high-wear parts.

  • H1150 / H1150D: High toughness and ductility (28–35 HRC) for impact-resistant or low-temperature applications.

• Wire EDM & Sinker EDM: Precision machining of hardened 17-4PH for splines, keyways, micro-slots, and sharp internal corners.

• Grinding & Surface Finishing: O.D./I.D. grinding, surface grinding (Ra 0.2 μm), passivation, bead blasting, electropolishing, and PVD/DLC coatings.

Targeted Industries & Key Component Keywords

1. Aerospace & Defense

• Actuator shafts, turbine blades, structural attachment brackets, aerospace-grade fasteners, latch mechanisms, landing gear components.

2. Oil & Gas, Marine, and Subsea

• Downhole tool housings, BOP (blowout preventer) valve stems, high-pressure pump shafts, choke valve plugs, subsea fluid connectors.

3. Robotics & Humanoid Automation

• High-torque joint output shafts, harmonic drive flexspline/outer ring blanks, dexterous hand skeleton links, precision spline shafts.

4. Medical & Pharmaceutical

• Micro-surgical forceps, orthopedic alignment guides, centrifuge rotors, endoscope structural housings, instrument handles.

5. Fluid Handling & Chemical Processing

• High-pressure pump impellers, mixing shafts, 3-way valve bodies, metering nozzles, sanitary fluid manifolds.

Why Partner with Us for Custom Machining?

• Full Traceability: Material Test Certificates (MTC to EN 10204 3.1) and raw material spectrographic analysis provided with every order.

• Flexible Orders & Rapid Turnaround: Prototyping in 3–5 business days, zero Minimum Order Quantity (no MOQ), seamless scaling to volume production.

• Quality Assurance: Equipped with CMM (Coordinate Measuring Machines), optical projectors, hardness testers, and digital roughness gauges for 100% dimensional compliance.

Send us your CAD drawings (STEP, IGES, DWG, PDF) to receive an immediate manufacturability review and competitive quotation.
